JTM2024S05 - XP POWER

Description: Isolated Module DC DC Converter 1 Output 5V 4A 9V - 36V Input

Download JTM2024S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
JTM2024S05 - XP POWER - PCB symbol
click to zoom
PCB Footprints

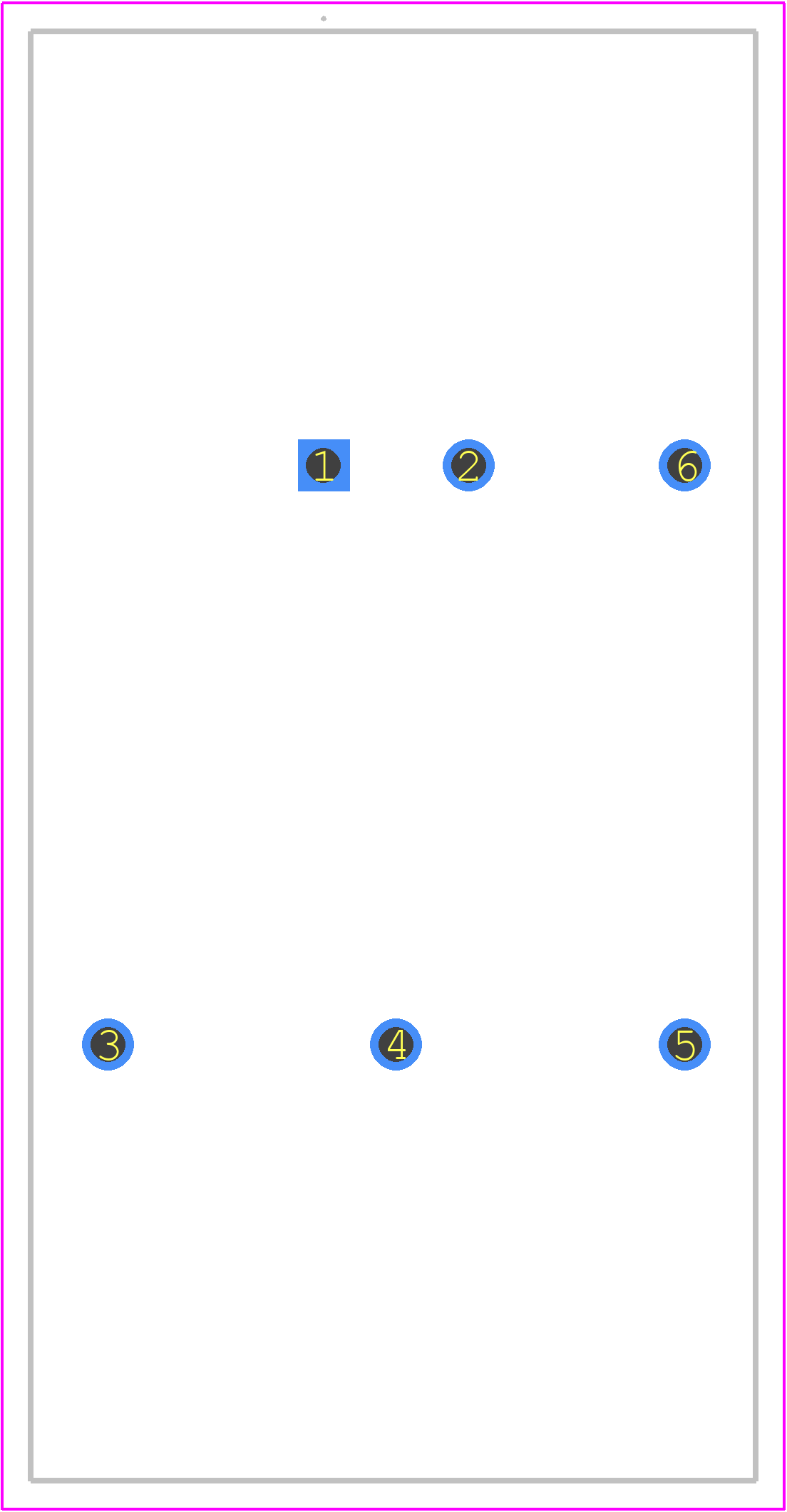

JTM2024S05 - XP POWER PCB footprint - Other - Other - JTM2024S05-2
click to zoom
3D Models
JTM2024S05 - XP POWER - 3D model - Other - JTM2024S05-2
click to zoom

JTM2024S05 Details

  • Manufacturer Part Number:

    JTM2024S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    Module-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P6

  • Length:

    50.8 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    66 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    20 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

JTM2024S05 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the JTM2024S05 is 0.1uF. Exceeding this value may affect the power supply's stability and performance.
  • While the JTM2024S05 is rated for operation up to 80°C, it's recommended to derate the output power by 2.5% per °C above 60°C to ensure reliable operation. Consult the datasheet for thermal derating curves.
  • To ensure EMC, follow proper PCB layout and grounding practices, use a metal enclosure, and consider adding EMI filters or shielding if necessary. Consult XP Power's application notes for more information.
  • The recommended input fuse rating for the JTM2024S05 is 2A slow-blow. This ensures protection against input overcurrent and helps prevent damage to the power supply.
  • Yes, you can parallel multiple JTM2024S05 units, but ensure that each unit has its own input fuse and that the output voltages are matched within 1%. Consult XP Power's application notes for more information on paralleling power supplies.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JTM2024S05 Overview

Use the download button to access the JTM2024S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JTM20, or try a keyword search, such as Power Supply Modules
