JTX-4-10T+ - Mini-Circuits

Description: Surface Mount RF Transformer 50Ω 50 to 1000 MHz.

Download JTX-4-10T+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

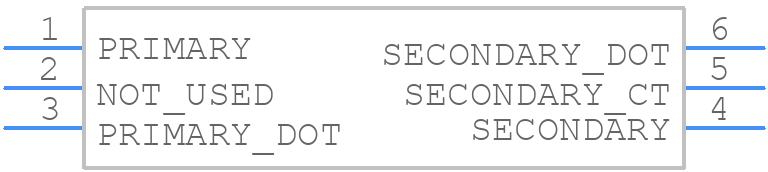

JTX-4-10T+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
JTX-4-10T+ - Mini-Circuits PCB footprint - Other - Other - JTX-4-10T+-1
click to zoom
3D Models
JTX-4-10T+ - Mini-Circuits - 3D model - Other - JTX-4-10T+-1
click to zoom

JTX-4-10T+ Details

  • Manufacturer Part Number:

    JTX-4-10T+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Additional Feature:

    OHMS RATIO IS 4, LENGTH DIMENSION INCLUDES TERMINALS ALSO

  • Application:

    POWER

  • Cut-off Frequency-Max:

    1000 MHz

  • Cut-off Frequency-Min:

    50 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    5.72 mm

  • Insertion Loss:

    1 dB

  • JESD-609 Code:

    e3

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    1000000 kHz

  • Operating Frequency-Min:

    50000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    4

  • Width:

    7.11 mm

JTX-4-10T+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt components. Mini-Circuits provides a impedance matching calculator on their website, which can help you determine the required component values for optimal matching.
  • The maximum power handling of the JTX-4-10T+ is 1W. Exceeding this power rating can cause damage to the device. It's essential to ensure that the input power is within the specified limits to maintain the device's reliability and performance.
  • The JTX-4-10T+ is rated for operation up to 85°C. While it can tolerate high temperatures, it's essential to ensure that the device is properly heat-sinked and that the operating temperature is within the specified range to maintain reliability and performance.
  • Mini-Circuits provides a troubleshooting guide on their website, which covers common issues and their solutions. Additionally, it's essential to ensure that the device is properly soldered, and the PCB layout is correct to minimize the risk of defects or performance issues.
