Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or an inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver with built-in current limiting.
The maximum allowable voltage drop across the relay contacts is not explicitly stated in the datasheet. However, as a general rule, it's recommended to keep the voltage drop below 100 mV to ensure reliable contact performance and to prevent excessive heating.
While the relay is rated for operation up to 85°C, it's essential to consider the derating curves provided in the datasheet. For high-temperature applications, it's recommended to consult with Panasonic's technical support or to consider using a relay with a higher temperature rating.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding or filtering components as needed. Additionally, consider using a relay with built-in EMC features, such as a shielded coil or a low-radiation design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JW1FSN-DC9V Overview

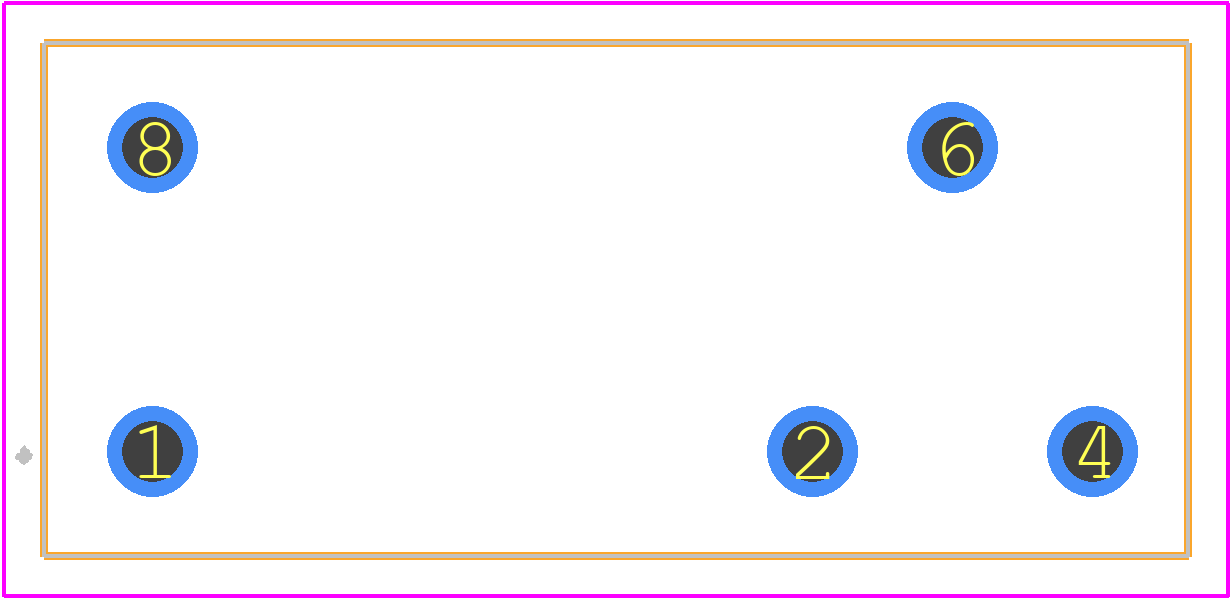

Use the download button to access the JW1FSN-DC9V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JW1FS,
or try a keyword search, such as Power/Signal Relays
