Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or an inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver IC with built-in current limiting.
The maximum allowable voltage drop across the relay contacts is typically around 100 mV to 200 mV. Exceeding this value can lead to contact degradation and reduced relay lifespan. Ensure that the relay is operated within the specified voltage range and that the load current is within the relay's rating.
While the JW2AHN-DC12V has a high operating temperature range of -40°C to 85°C, it's essential to consider the derating of the relay's characteristics at high temperatures. Consult the datasheet and application notes for guidance on temperature derating and ensure that the relay is operated within its specified temperature range.
To ensure EMC, follow proper PCB design practices, such as keeping the relay's coil and contacts away from sensitive analog circuits, using shielding, and implementing proper grounding and filtering. Additionally, consider using a relay with built-in EMC features, such as a shielded coil or a relay with a low electromagnetic emission design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JW2aHN-DC12V Overview

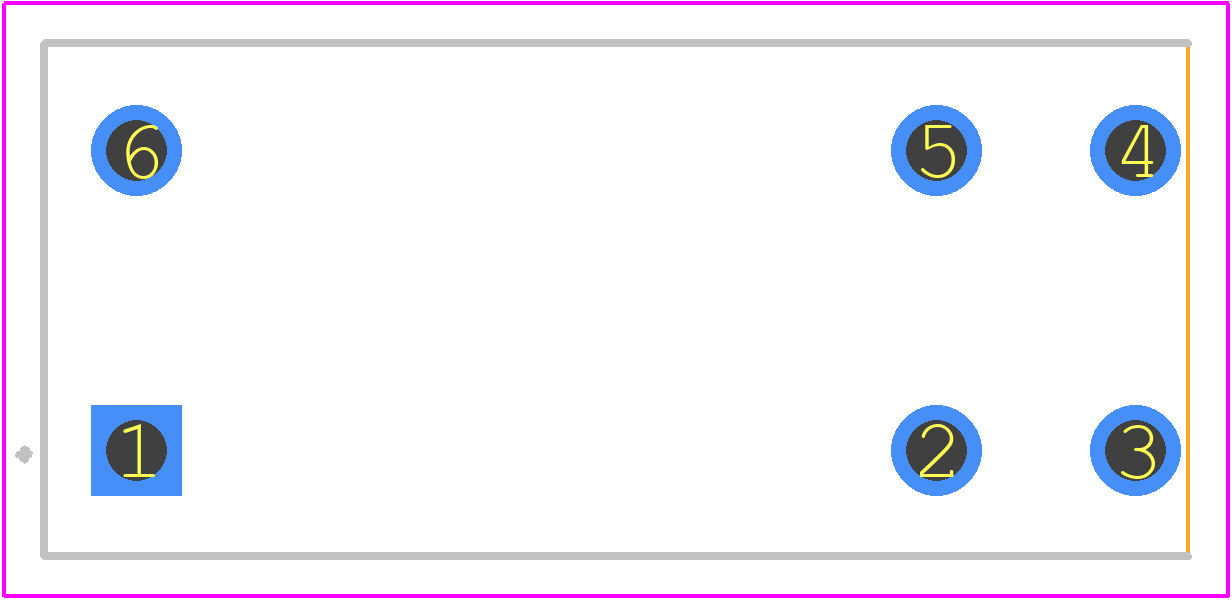

Use the download button to access the JW2aHN-DC12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JW2aH,
or try a keyword search, such as Power/Signal Relays
