Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper soldering, thermal management, and to prevent electrical noise issues.
To handle the inrush current, consider adding a soft-start circuit or an NTC thermistor in series with the relay coil to limit the inrush current. Additionally, ensure the power supply can handle the peak current during switching.
While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to consider the relay's performance in extreme environments. Panasonic provides additional information on temperature derating and performance in their application notes or technical support resources.
To ensure EMC, follow proper PCB design practices, such as keeping the relay's coil and contacts away from sensitive analog circuits, using shielding, and implementing proper grounding techniques. Additionally, consider using a relay with built-in EMC features, such as Panasonic's JW2HN-DC12V, which has a built-in electromagnetic shield.
The JW2HN-DC12V relay has an expected lifespan of 100,000 cycles or more, depending on the operating conditions. When designing with this relay, consider the expected lifespan and plan for potential relay replacements or maintenance schedules to ensure the overall system's reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JW2HN-DC12V Overview

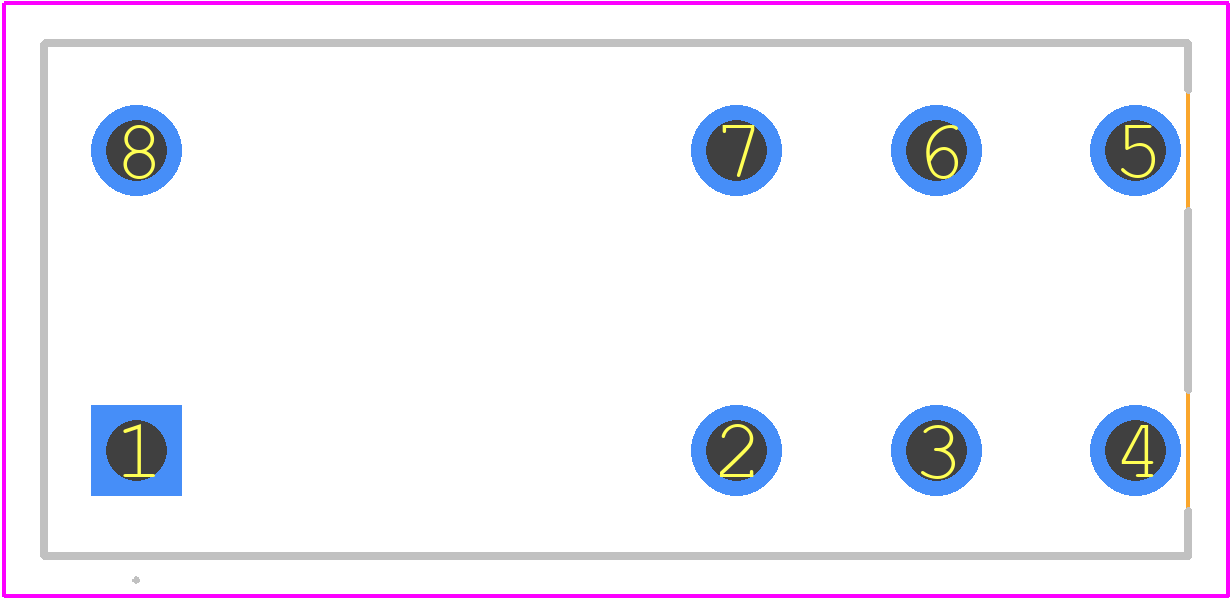

Use the download button to access the JW2HN-DC12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JW2HN,
or try a keyword search, such as Power/Signal Relays
