Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. The recommended layout ensures proper heat dissipation and minimizes the risk of electrical noise and interference.
To ensure reliable switching and minimize contact resistance, it's essential to follow proper soldering techniques, use a clean and dry environment, and avoid excessive mechanical stress on the relay. Additionally, Panasonic recommends using a contact protection circuit to prevent damage from inrush currents and voltage spikes.
The maximum allowable voltage for the JW2AHN-DC9V relay's coil is 14V, and the maximum allowable current is 30mA. Exceeding these ratings can lead to premature failure or damage to the relay.
The JW2AHN-DC9V relay is rated for operation up to 85°C (185°F). While it can tolerate high temperatures, prolonged exposure to temperatures above 85°C can affect its reliability and lifespan. Panasonic recommends derating the relay's specifications for high-temperature applications.
To prevent damage and ensure reliability, handle the JW2AHN-DC9V relay by the body, avoiding touching the leads or electrical contacts. Store the relay in a clean, dry environment, away from direct sunlight and moisture. Avoid bending or flexing the leads, and use anti-static packaging and handling procedures to prevent ESD damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JW2aHN-DC9V Overview

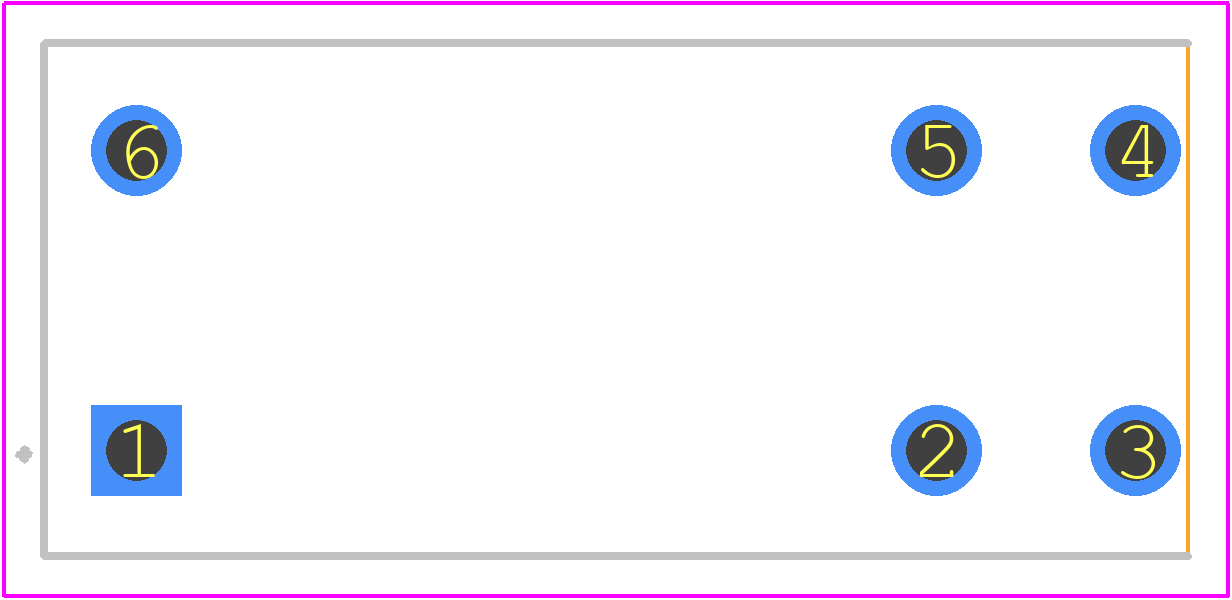

Use the download button to access the JW2aHN-DC9V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JW2aH,
or try a keyword search, such as Power/Signal Relays
