XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the JWK1024D05 is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's essential to ensure proper mounting and screw torque to prevent damage.
To ensure EMC, XP Power recommends following the module's layout and grounding guidelines, using a metal enclosure, and implementing proper shielding and filtering in the system design. Additionally, the module's input and output cables should be kept as short as possible and routed away from noise sources.
The maximum allowable input capacitance for the JWK1024D05 is 47 μF. Exceeding this value may cause instability or affect the module's performance. It's essential to ensure that the input capacitance, including any external capacitors, does not exceed this limit.
Yes, the JWK1024D05 can be used in a redundant or parallel configuration to achieve higher power or redundancy. However, it's crucial to ensure that the modules are properly synchronized and configured to prevent damage or instability. XP Power recommends consulting their application notes or contacting their technical support for guidance on implementing such configurations.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JWK1024D05 Overview

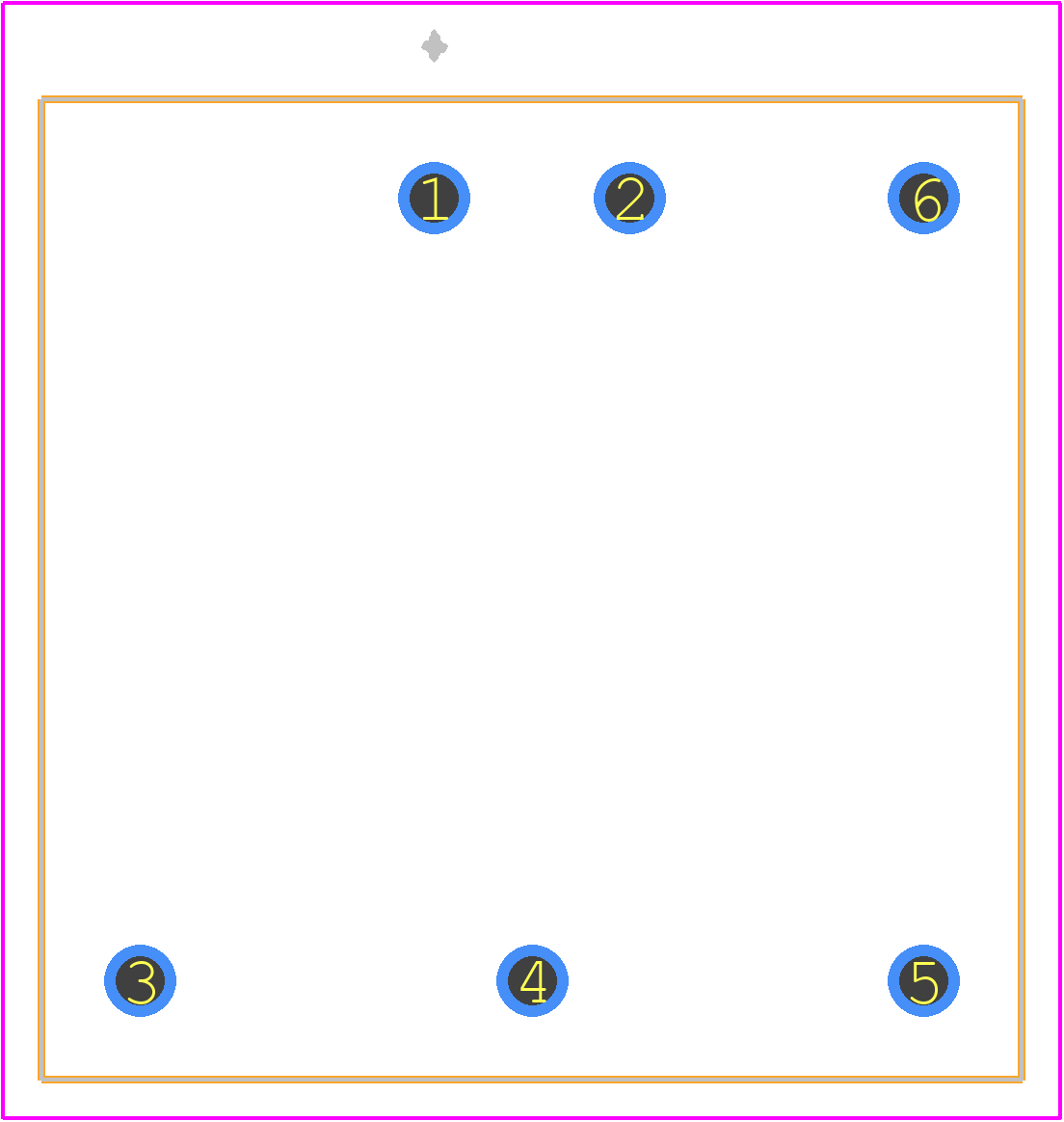

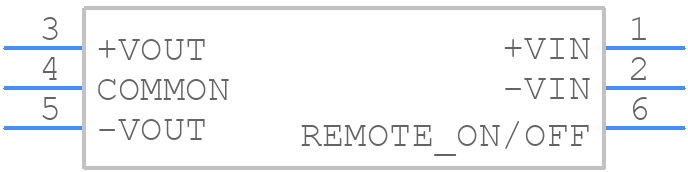

Use the download button to access the JWK1024D05 schematic symbol, PCB footprint, and 3D model.
