JWK2524S12 - XP POWER

Description: Isolated Module DC DC Converter 1 Output 12V 2.09A 9V - 36V Input

Download JWK2524S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
JWK2524S12 - XP POWER - PCB symbol
click to zoom
PCB Footprints

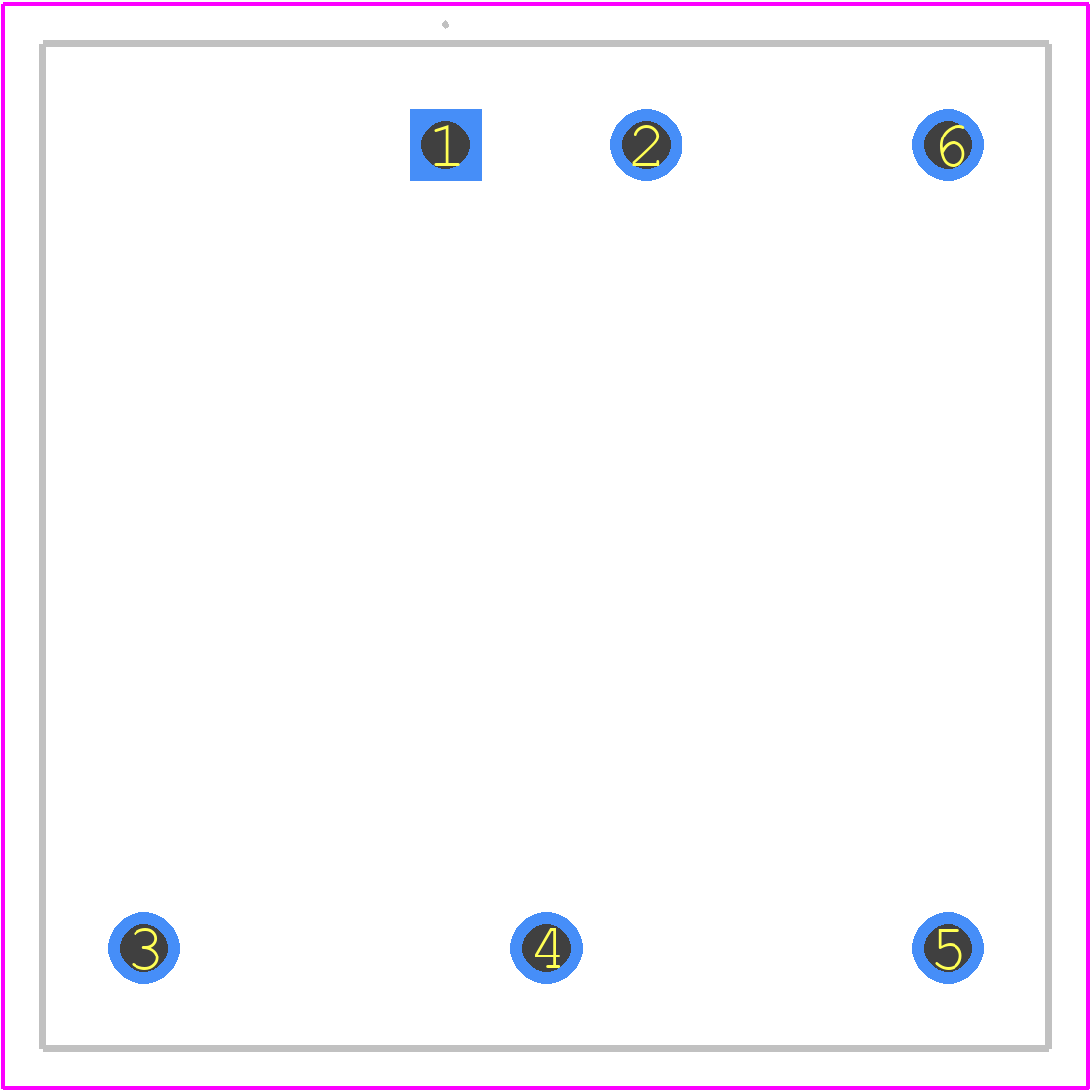

JWK2524S12 - XP POWER PCB footprint - Other - Other - 6-DIP Module_2025-1.3
click to zoom
3D Models
JWK2524S12 - XP POWER - 3D model - Other - 6-DIP Module_2025-1.3
click to zoom

JWK2524S12 Details

  • Manufacturer Part Number:

    JWK2524S12

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    PACKAGE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, EN, UKCA, UL

  • Efficiency (Main Output):

    89%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-MDMA-P6

  • Length:

    25.4 mm

  • Line Regulation-Max:

    0.8%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.09 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,.8

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OVER VOLTAGE, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.053 Vrms

  • Screening Level:

    UL 62328-1

  • Seated Height-Max:

    10.29 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    25 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

JWK2524S12 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • The JWK2524S12 is certified to UL60950-1, EN60950-1, and IEC60950-1 safety standards. Ensure your application meets the required safety certifications by following the guidelines in the datasheet and consulting with XP Power's technical support team.
  • The maximum capacitance on the output of the JWK2524S12 is 2200uF. Exceeding this value may affect the stability of the converter and lead to oscillations or reduced performance.
  • Yes, the JWK2524S12 is designed to withstand high-vibration environments. However, it's essential to ensure the converter is properly secured to the PCB and the PCB is mounted securely to the chassis to prevent damage or malfunction.
  • Consult XP Power's application notes and technical support resources for troubleshooting guides and FAQs. Common issues can often be resolved by checking the input voltage, output load, and thermal management system.
