XP Power recommends a PCB layout with a solid ground plane and a thermal pad connected to a heat sink or a metal plate to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, ensure good airflow around the module to prevent overheating.
Yes, the JWL4024S24 is designed to withstand vibrations up to 10G peak acceleration, 10-2000 Hz frequency range, and 1.5 mm peak-to-peak amplitude. However, it's recommended to follow XP Power's guidelines for mounting and securing the module to ensure reliable operation.
To ensure EMC, XP Power recommends following their guidelines for PCB layout, component placement, and shielding. Additionally, ensure that the module is installed in a metal enclosure with proper grounding and that all cables are properly shielded and routed.
The maximum allowable input capacitance for the JWL4024S24 is 47 μF. Exceeding this value may affect the module's stability and performance. It's recommended to follow XP Power's guidelines for input capacitance selection and layout.
Yes, the JWL4024S24 can be used in a redundant or parallel configuration to achieve higher power ratings or redundancy. However, it's essential to follow XP Power's guidelines for parallel operation, including synchronization and current sharing, to ensure reliable operation and prevent damage to the modules.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JWL4024S24 Overview

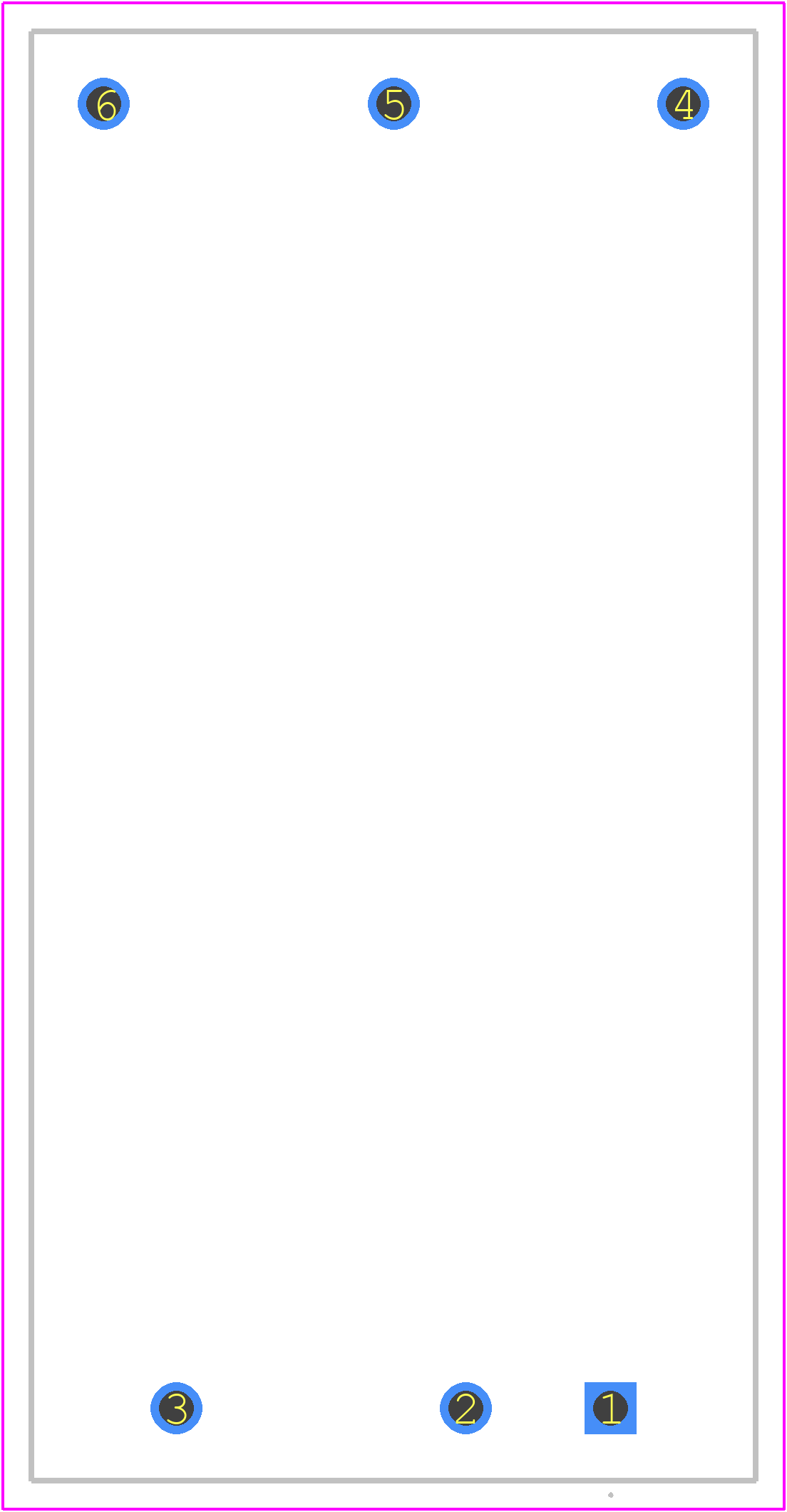

Use the download button to access the JWL4024S24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JWL40,
or try a keyword search, such as Power Supply Modules
