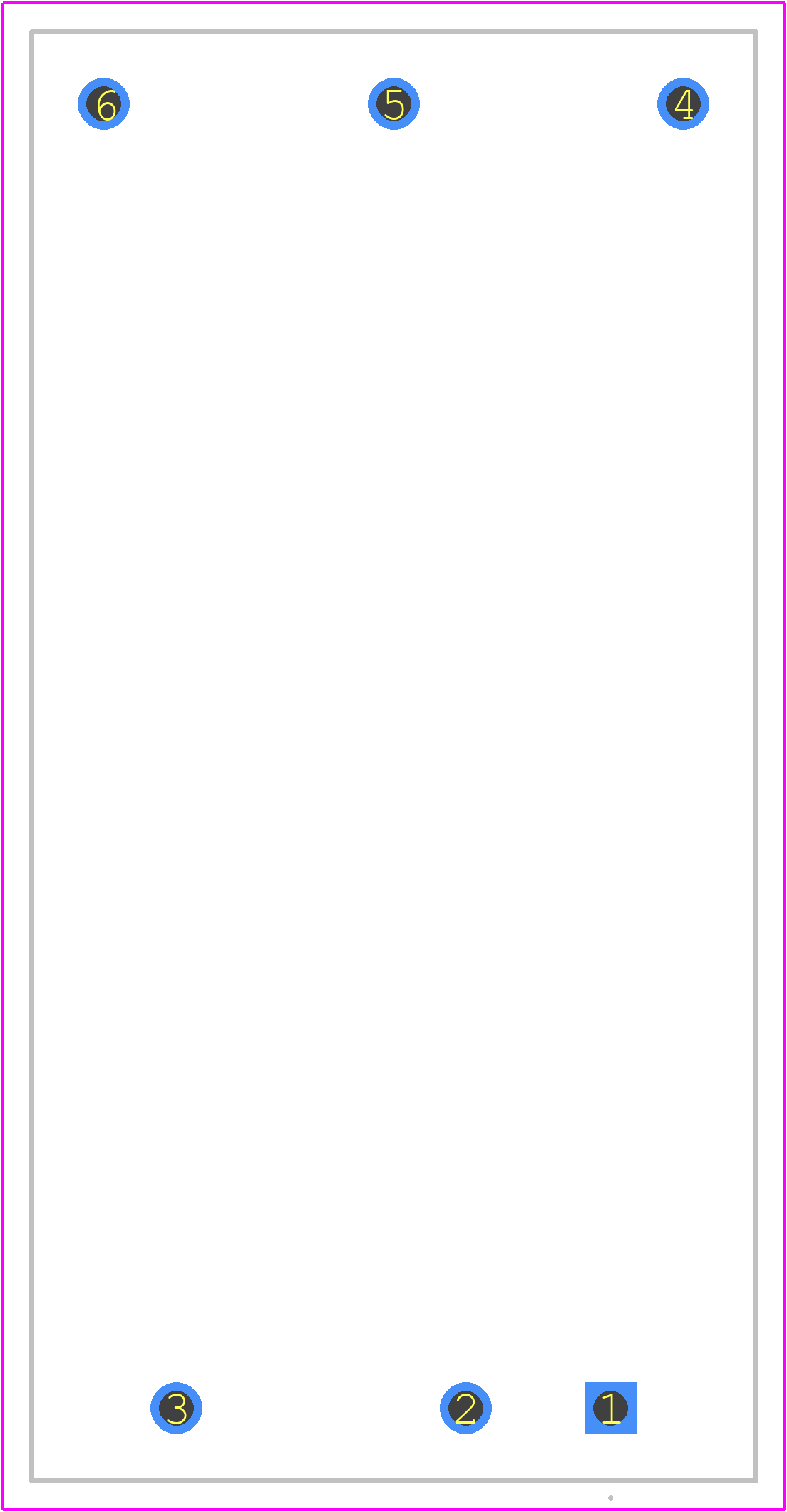

JWL4048S24 - XP POWER

JWL4048S24 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  XP Power recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
• How do I ensure reliable start-up of the converter in my application?
  To ensure reliable start-up, XP Power recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents and ensure a smooth start-up.
• What is the maximum capacitive load that can be driven by the JWL4048S24?
  The maximum capacitive load that can be driven by the JWL4048S24 is 10,000 μF. Exceeding this value may cause instability or oscillation.
• Can I use the JWL4048S24 in a high-temperature environment?
  While the JWL4048S24 is rated for operation up to 85°C, XP Power recommends derating the output power by 2.5% per degree above 70°C to ensure reliable operation in high-temperature environments.
• How do I troubleshoot output voltage deviations or instability issues?
  To troubleshoot output voltage deviations or instability issues, XP Power recommends checking the input voltage, output load, and PCB layout for any anomalies or noise sources that may be affecting the converter's performance.
