JWL5024S12 - XP POWER

Description: XP Power Through Hole 50W Isolated DC-DC Converter, Vin 9 → 36 V dc, I/O isolation 1.5 (Minimum)kV dc

Download JWL5024S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
JWL5024S12 - XP POWER - PCB symbol
click to zoom
PCB Footprints

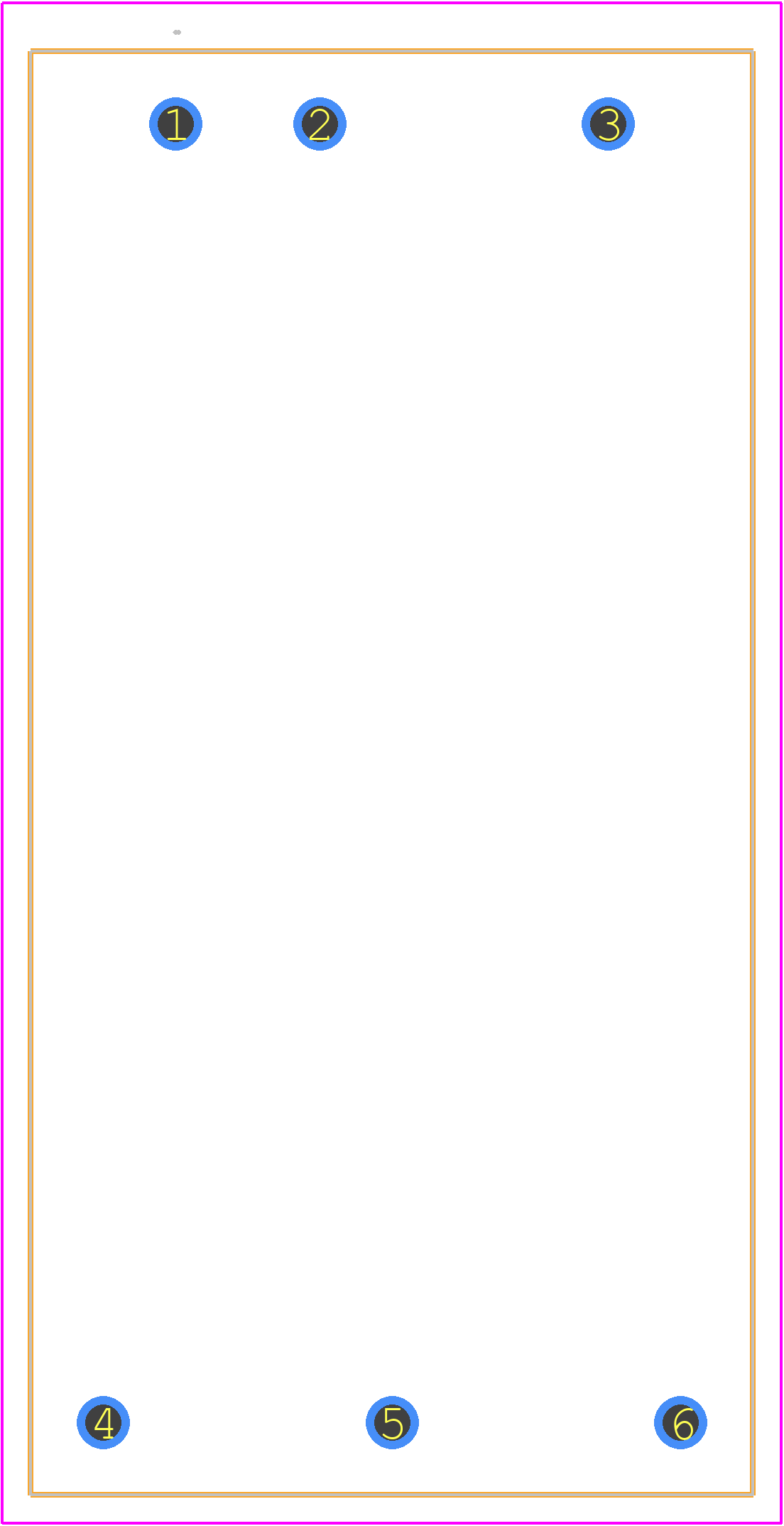

JWL5024S12 - XP POWER PCB footprint - Other - Other - JWL5024S12-2
click to zoom
3D Models
JWL5024S12 - XP POWER - 3D model - Other - JWL5024S12-2
click to zoom

JWL5024S12 Details

  • Manufacturer Part Number:

    JWL5024S12

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-MDMA-P6

  • JESD-609 Code:

    e4

  • Length:

    50.8 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    53 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    11.25 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    50 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

JWL5024S12 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. A thermal via array under the module can also improve heat transfer.
  • To ensure reliable start-up and shutdown, XP Power recommends a soft-start circuit to limit inrush current, and a shutdown circuit with a minimum of 10ms delay to prevent voltage spikes.
  • The derating curves for the JWL5024S12 can be obtained from XP Power's application engineers. They provide a detailed derating curve for output power vs. temperature, which can be used to determine the maximum output power at a given temperature.
  • Yes, the JWL5024S12 can be used in a redundant configuration. However, XP Power recommends using a diode ORing circuit to prevent back-feeding of power between modules, and to ensure reliable redundancy.
  • XP Power recommends a fuse rating of 5A to 10A, depending on the input voltage and system requirements. The fuse should be sized to protect the module from overcurrent conditions.
