K4S643232C-TC80 - SAMSUNG

Description: SDRAM, 2M x 32, 86 Pin, Plastic, TSSOP

Download K4S643232C-TC80 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

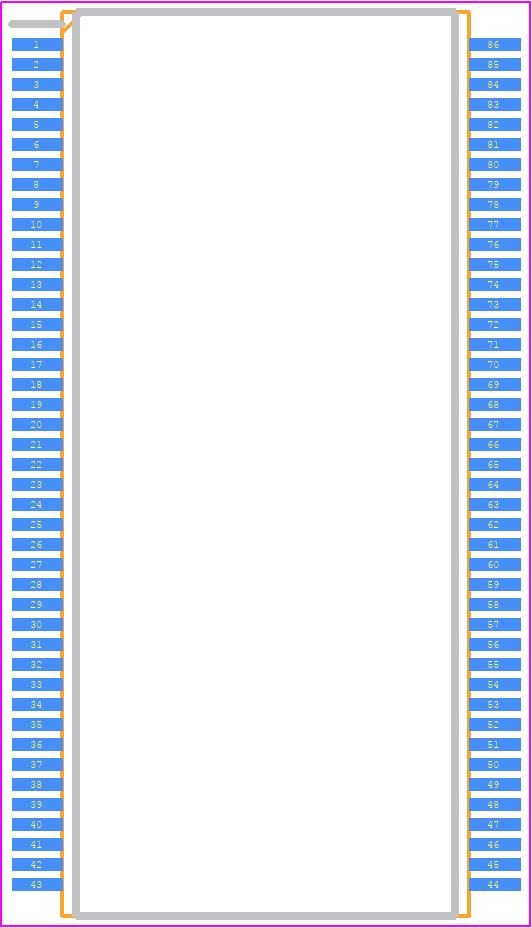

K4S643232C-TC80 - SAMSUNG PCB footprint - Small Outline Packages - Small Outline Packages - 86-TSOP2-400F
click to zoom
3D Models
K4S643232C-TC80 - SAMSUNG  - 3D model - Small Outline Packages - 86-TSOP2-400F
click to zoom

K4S643232C-TC80 Details

  • Manufacturer Part Number:

    K4S643232C-TC80

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSOP2

  • Package Description:

    0.400 X 0.875 INCH, 0.50 MM PITCH, TSOP2-86

  • Pin Count:

    86

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.02

  • Manufacturer:

    Samsung Semiconductor

  • YTEOL:

    0

  • Access Mode:

    FOUR BANK PAGE BURST

  • Access Time-Max:

    6 ns

  • Additional Feature:

    AUTO/SELF REFRESH

  • Clock Frequency-Max (fCLK):

    125 MHz

  • I/O Type:

    COMMON

  • Interleaved Burst Length:

    1,2,4,8

  • JESD-30 Code:

    R-PDSO-G86

  • JESD-609 Code:

    e0

  • Length:

    22.22 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    SYNCHRONOUS DRAM

  • Memory Width:

    32

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    86

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    2MX32

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Equivalence Code:

    TSSOP86,.46,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Refresh Cycles:

    4096

  • Seated Height-Max:

    1.2 mm

  • Self Refresh:

    YES

  • Sequential Burst Length:

    1,2,4,8,FP

  • Standby Current-Max:

    0.002 A

  • Supply Current-Max:

    0.16 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    10.16 mm
