K847PH - Vishay

Description: Transistor Output Optocouplers Phototransistor Out Quad CTR 50-600%

Download K847PH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

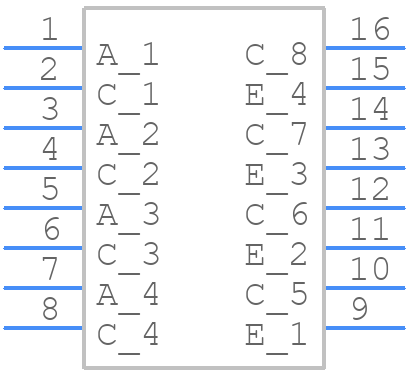

K847PH - Vishay - PCB symbol
click to zoom
PCB Footprints

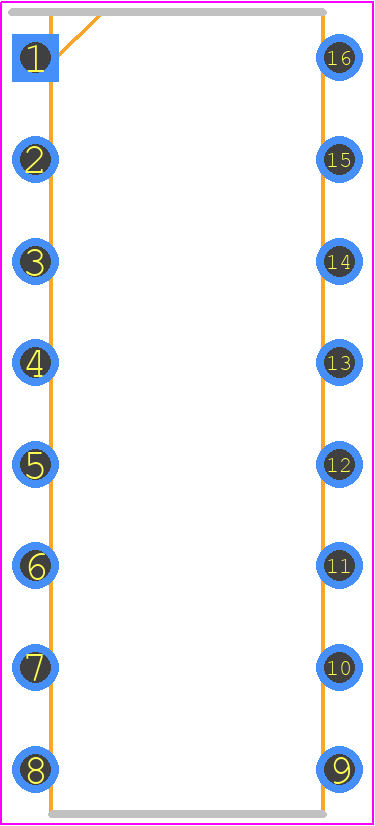

K847PH - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-16
click to zoom
3D Models
K847PH - Vishay - 3D model - Dual-In-Line Packages - DIP-16
click to zoom

K847PH Details

  • Manufacturer Part Number:

    K847PH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Terminal Finish:

    Matte Tin (Sn)

K847PH Frequently Asked Questions (FAQs)

  • The recommended storage condition for K847PH is in a dry, cool place, away from direct sunlight, and in its original packaging or a similar protective package.
  • Handle the K847PH by the body, avoid touching the leads or the glass, and use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
  • The maximum allowable voltage for the K847PH is 1000 V, but it's recommended to operate within the specified voltage rating to ensure reliability and longevity.
  • The K847PH is rated for operation up to 150°C, but it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature applications.
  • Use a soldering iron with a temperature of 250°C to 270°C, and a solder with a melting point of 180°C to 190°C. Apply a small amount of solder to the lead, and avoid overheating or applying excessive force.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

K847PH Overview

Use the download button to access the K847PH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like K847P, or try a keyword search, such as Optocoupler
