KA1-MV10205M1 - Harwin

Description: Kona: 2 Pos Plug SIL Straight 4.5mm THT Connector 5.2mm Board Mount

Download KA1-MV10205M1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KA1-MV10205M1 - Harwin - PCB symbol
click to zoom

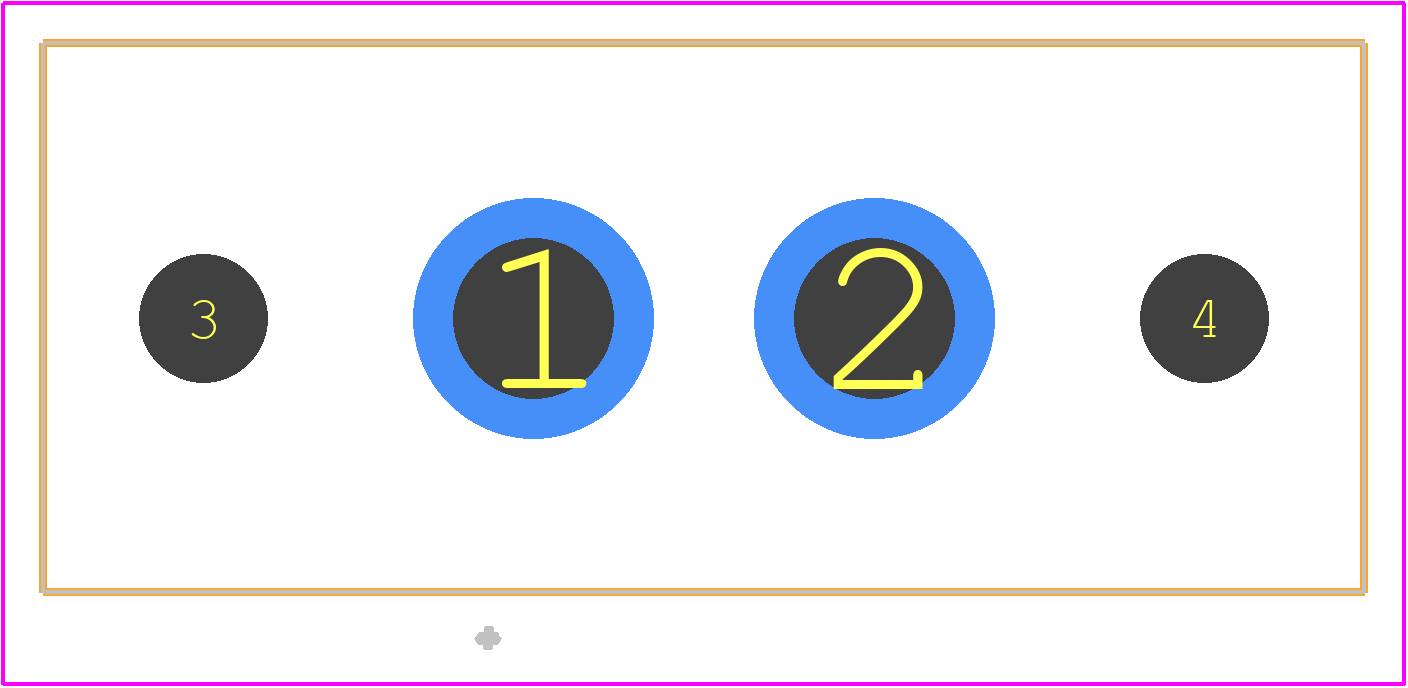

PCB Footprints
KA1-MV10205M1 - Harwin PCB footprint - Other - Other - KA1-MV10205M1
click to zoom
3D Models
KA1-MV10205M1 - Harwin - 3D model - Other - KA1-MV10205M1
click to zoom

KA1-MV10205M1 Details

  • Manufacturer Part Number:

    KA1-MV10205M1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    BERYLLIUM COPPER

  • JESD-609 Code:

    e4

KA1-MV10205M1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the KA1-MV10205M1 is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat 2.
  • Yes, the KA1-MV10205M1 is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity rating of 95% RH at 40°C.
  • The KA1-MV10205M1 has a mating cycle life of 500 cycles, as specified in the Harwin datasheet.
  • Yes, the KA1-MV10205M1 can be used with PCB thicknesses ranging from 1.2mm to 2.4mm, but the recommended PCB thickness is 1.6mm for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KA1-MV10205M1 Overview

Use the download button to access the KA1-MV10205M1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KA1-M, or try a keyword search, such as Headers and Edge Type Connectors
