A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
Use a soft-start circuit to limit the inrush current during startup. For shutdown, ensure a controlled shutdown sequence to prevent voltage spikes and oscillations.
Use a common-mode choke, X-capacitors, and Y-capacitors to filter EMI. Ensure the filter components are placed close to the device and the PCB layout is optimized for EMI reduction.
Use a low-standby-power controller, such as the NCP1031, and optimize the design for low quiescent current. Ensure the device is in a low-power state during standby mode.
Use a heat sink with a thermal resistance of <1°C/W. Ensure good thermal contact between the device and heat sink. Consider using thermal interface material and a fan for forced convection cooling.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KA7500CDTF Overview

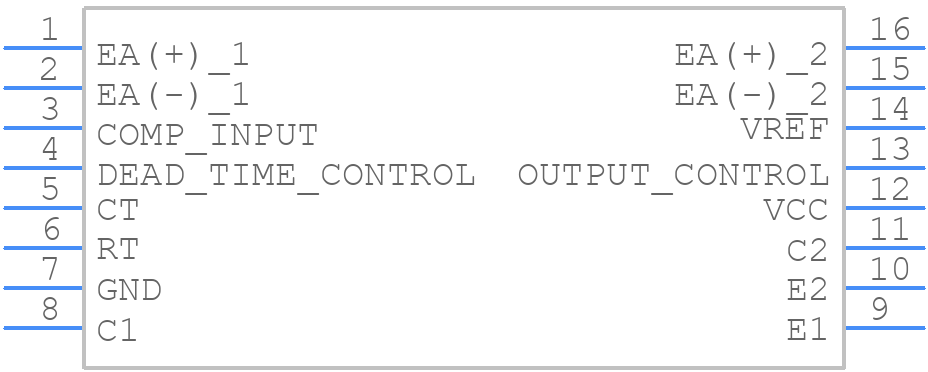

Use the download button to access the KA7500CDTF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KA750,
or try a keyword search, such as Switching Regulator or Controllers
