Technical Content
Part Image

KAA-3528SURKCGKS - Kingbright

Description: Kingbright KAA-3528SURKCGKS Bi-colour Green, Red LED, 570 / 630 nm, PLCC 4, Round Lens SMD Package

Download KAA-3528SURKCGKS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

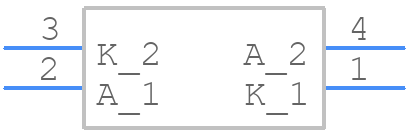

Symbol
KAA-3528SURKCGKS - Kingbright - PCB symbol
click to zoom
PCB Footprints
KAA-3528SURKCGKS - Kingbright PCB footprint - Other - Other - 3.5x2.8mm_Surface_Mount_LED_LAMP
click to zoom

KAA-3528SURKCGKS Details

  • Manufacturer Part Number:

    KAA-3528SURKCGKS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3.50 X 2.80 MM, ROHS COMPLIANT, SMT, 4 PIN

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED/GREEN

  • Color@Wavelength:

    Grn-Yell/Orng-Red

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Lens Type:

    WATER CLEAR

  • Luminous Intensity-Min:

    120 cd

  • Luminous Intensity-Nom:

    320.0/80.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DUAL COLOR LED

  • Overall Height:

    1.8 mm

  • Packing Method:

    TR, 7 INCH

  • Peak Wavelength:

    650/574 nm

  • Reverse Voltage-Max:

    5 V

  • Shape:

    ROUND

  • Size:

    2.4 mm

  • Surface Mount:

    YES

  • Terminal Pitch:

    2.8 mm

  • Viewing Angle:

    120 deg

KAA-3528SURKCGKS Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the KAA-3528SURKCGKS is -20°C to 30°C (-4°F to 86°F) with a relative humidity of 60% or less.
  • While the KAA-3528SURKCGKS is not specifically designed for outdoor use, it can be used in outdoor applications if properly sealed and protected from moisture and extreme temperatures.
  • The maximum forward current that can be applied to the KAA-3528SURKCGKS is 30mA. Exceeding this current may reduce the LED's lifespan or cause damage.
  • Yes, the KAA-3528SURKCGKS is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F) for a maximum of 10 seconds.
  • The typical luminous intensity of the KAA-3528SURKCGKS is 1,500-2,500 mcd (millicandelas) at a viewing angle of 120°.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KAA-3528SURKCGKS Overview

Use the download button to access the KAA-3528SURKCGKS schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like KAA-3, or try a keyword search, such as Visible LEDs
