KAAF-5050RGBS-13 footprint, schematic symbol and 3D model by Kingbright

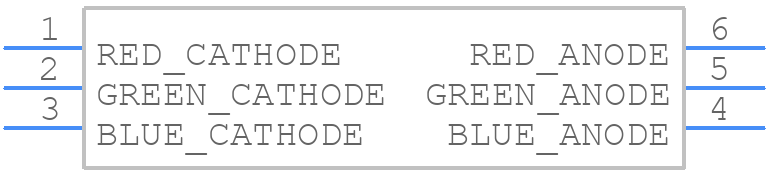

Symbol

PCB Footprints

3D Models

KAAF-5050RGBS-13 Details

The recommended storage temperature range for the KAAF-5050RGBS-13 is -30°C to 60°C.
Yes, the KAAF-5050RGBS-13 can be used in outdoor applications, but it's recommended to use a suitable encapsulant or coating to protect the LED from moisture and UV radiation.
The maximum allowable current for the KAAF-5050RGBS-13 is 30mA per channel (R, G, and B).
To ensure proper soldering, use a soldering iron with a temperature of 260°C to 280°C, and apply a small amount of solder to the pads. Avoid applying excessive heat or pressure, which can damage the LED.
Yes, the KAAF-5050RGBS-13 can be used in high-vibration applications, but it's recommended to use a suitable mounting method, such as a sturdy PCB or a vibration-dampening material, to minimize the risk of mechanical stress.

Expert Contribution

System Verified

Community Approved

Use the download button to access the KAAF-5050RGBS-13 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like KAAF-, or try a keyword search, such as Visible LEDs
