KAI-08052-ABA-JD-BA - onsemi

Description: Interline Transfer CCD Image Sensor, 8.1 MP Monochrome, Telecentric Microlens, PGA Package, Sealed Clear Cover Glass with AR coating (both sides), Standard Grade

Download KAI-08052-ABA-JD-BA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

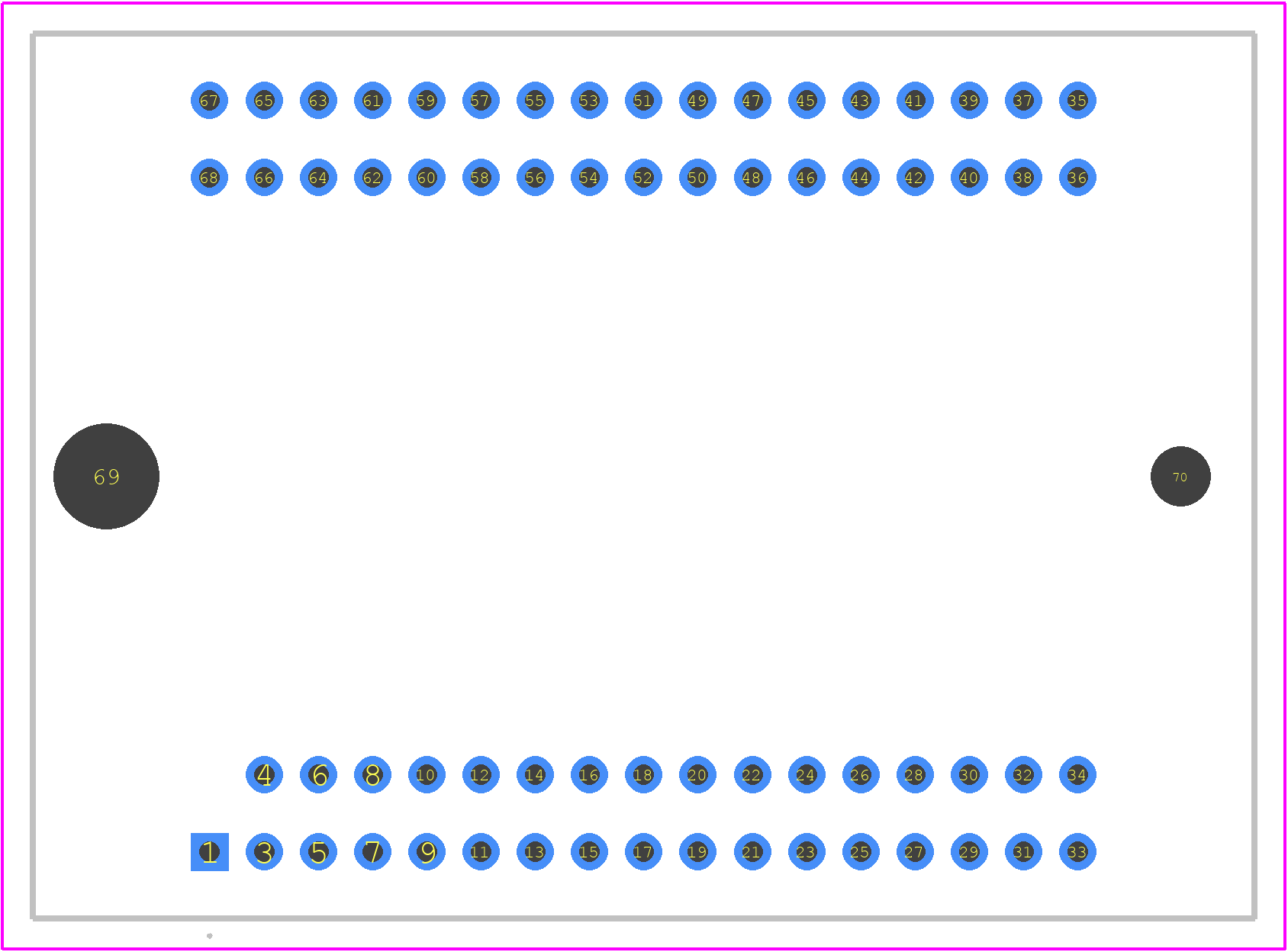

KAI-08052-ABA-JD-BA - onsemi PCB footprint - Other - Other - CPGA67, 40x29 CASE 107EJ ISSUE O
click to zoom
3D Models
KAI-08052-ABA-JD-BA - onsemi  - 3D model - Other - CPGA67, 40x29 CASE 107EJ ISSUE O
click to zoom

KAI-08052-ABA-JD-BA Details

  • Manufacturer Part Number:

    KAI-08052-ABA-JD-BA

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CPGA-67

  • Package Description:

    PGA-68

  • Manufacturer Package Code:

    107EJ

  • Date Of Intro:

    2016-06-01

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    IT HAS OUTPUT SENSITIVITY 35 MICRO VOLT PER ELECTRON; ELECTRONIC SHUTTER

  • Array Type:

    INTERLINE

  • Body Breadth:

    29 mm

  • Body Height:

    3.34 mm

  • Body Length or Diameter:

    40 mm

  • Dynamic Range:

    66 dB

  • Horizontal Pixel:

    3296

  • Housing:

    CERAMIC

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -50 °C

  • Optical Format:

    4/3 inch

  • Output Range:

    -3 to 10mA check

  • Output Type:

    CURRENT OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Pixel Size:

    5.5X5.5 µm

  • Sensors/Transducers Type:

    IMAGE SENSOR,CCD

  • Spectral Response (nm):

    300-1100

  • Supply Voltage-Max:

    15.5 V

  • Supply Voltage-Min:

    14.5 V

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

  • Vertical Pixel:

    2472

KAI-08052-ABA-JD-BA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range is -20°C to 70°C, with a storage temperature range of -40°C to 100°C.
  • The recommended power-up sequence is to apply VDD (analog power) first, followed by VDDC (digital power), and then VDDA (analog I/O power). The power-down sequence should be reversed.
  • The maximum clock frequency is 40 MHz, but it can be operated at lower frequencies depending on the application requirements.
  • Optimizing image quality involves adjusting the gain, offset, and black level calibration, as well as optimizing the analog-to-digital converter (ADC) settings. Consult the datasheet and application notes for more information.
  • Yes, the KAI-08052-ABA-JD-BA is compatible with lead-free soldering, but it's essential to follow the recommended soldering profile to avoid damaging the device.
