- Part Number KAT-1+
- Manufacturer Mini-Circuits
- Pin Count 7
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MC1630-1_2023-1
- Released Date Oct 13, 2023
- Last Modified Date Oct 14, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
KAT-1+ Details
-
Manufacturer Part Number:
KAT-1+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Date Of Intro:
2018-05-21
-
Manufacturer:
Mini-Circuits
-
YTEOL:
8
-
Attenuation-Nom:
0.9 dB
-
Construction:
COMPONENT
-
Input Power-Max (CW):
33.01 dBm
-
Mounting Feature:
SURFACE MOUNT
KAT-1+ Frequently Asked Questions (FAQs)
-
A good PCB layout and grounding scheme is crucial for optimal performance. Mini-Circuits recommends a multi-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common ground point for the amplifier and the power supply.
-
The input and output impedance matching networks depend on the specific application and frequency range. Mini-Circuits provides a general guideline for impedance matching in the datasheet, but it's recommended to consult with an RF engineer or use simulation software to optimize the matching networks for the specific application.
-
The maximum power handling capability of the KAT-1+ is not explicitly stated in the datasheet, but it's generally recommended to keep the input power below +10 dBm to avoid compression and distortion. Higher power levels may cause the amplifier to saturate or even damage the device.
-
The KAT-1+ requires a positive voltage supply and a negative voltage supply. The recommended biasing scheme is to use a voltage divider network to set the gate voltage, and a current-limiting resistor to set the drain current. The optimal bias point depends on the specific application and frequency range.
-
The noise figure of the KAT-1+ is not explicitly stated in the datasheet, but it's typically around 2-3 dB. The noise figure can be affected by the input and output impedance matching, as well as the biasing scheme.
Trust Checks
Community Provided
System Verified
Community Approved
KAT-1+ Overview

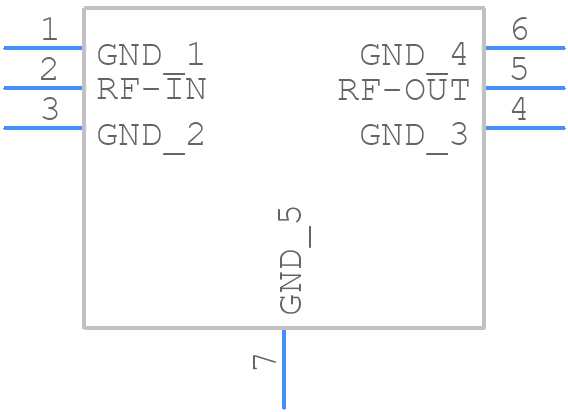

Use the download button to access the KAT-1+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KAT-1,
or try a keyword search, such as RF/Microwave Attenuators
