KB2620EW - Kingbright

Description: LED Bars and Arrays Red 625nm 50mcd Light Bar

Download KB2620EW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

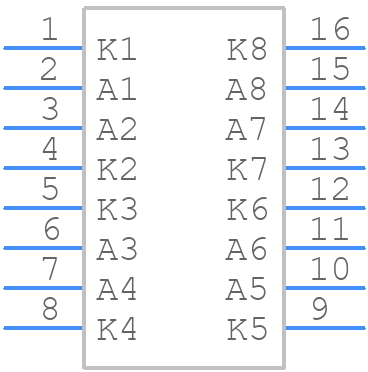

KB2620EW - Kingbright - PCB symbol
click to zoom
PCB Footprints

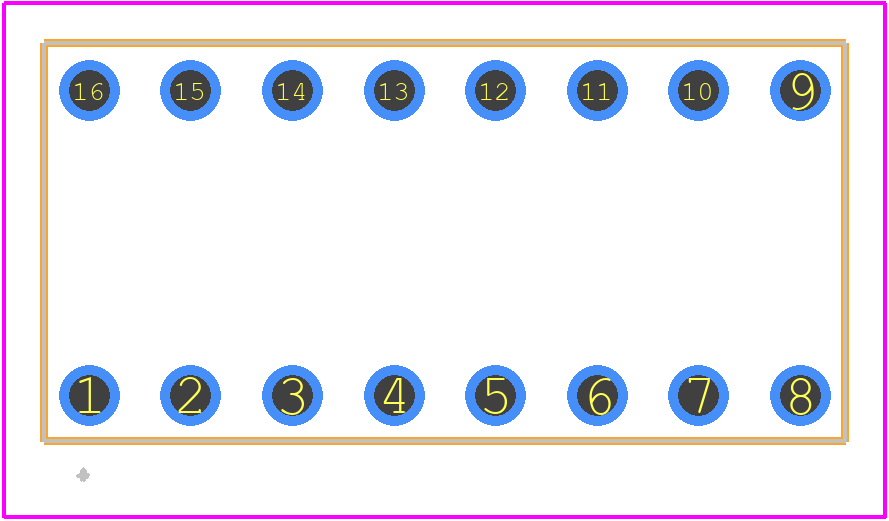

KB2620EW - Kingbright PCB footprint - Other - Other - KB2620EW-2
click to zoom
3D Models
KB2620EW - Kingbright - 3D model - Other - KB2620EW-2
click to zoom

KB2620EW Details

  • Manufacturer Part Number:

    KB2620EW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HIGH EFFICIENCY RED

  • Configuration:

    SEPARATE, 8 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Lens Type:

    DIFFUSED WHITE

  • Luminous Intensity-Nom:

    50.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    6.12 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    627 nm

  • Shape:

    RECTANGULAR

  • Size:

    8.89 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    2.54 mm

KB2620EW Frequently Asked Questions (FAQs)

  • The recommended storage temperature for KB2620EW is -20°C to 30°C (-4°F to 86°F) to ensure optimal performance and longevity.
  • Yes, KB2620EW is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from environmental factors like moisture, dust, and extreme temperatures.
  • The maximum forward current rating for KB2620EW is 30mA. Exceeding this rating may reduce the LED's lifespan or cause damage.
  • Yes, KB2620EW is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The typical viewing angle for KB2620EW is 120°, which means the LED's brightness and color appearance remain consistent within this angle.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KB2620EW Overview

Use the download button to access the KB2620EW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KB262, or try a keyword search, such as Visible LEDs
