KC2-11+ - Mini-Circuits

Description: RF IC Frequency Multiplier General Purpose 1GHz ~ 2.2GHz

Download KC2-11+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

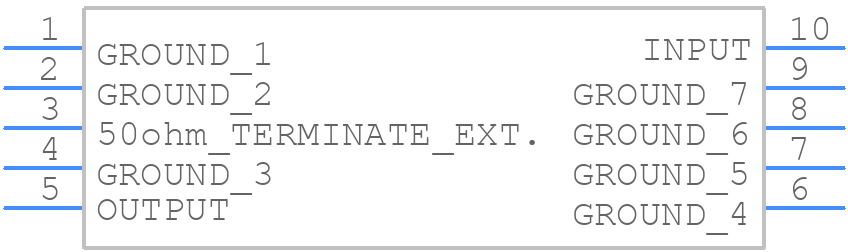

KC2-11+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
KC2-11+ - Mini-Circuits PCB footprint - Other - Other - DZ885_2023
click to zoom
3D Models
KC2-11+ - Mini-Circuits - 3D model - Other - DZ885_2023
click to zoom

KC2-11+ Details

  • Manufacturer Part Number:

    KC2-11+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    13.5 dB

  • Input Power-Max (CW):

    23 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    1100 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    FL10,.24

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Surface Mount:

    YES

KC2-11+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the KC2-11+ is -40°C to +85°C.
  • Yes, the KC2-11+ is designed to operate in humid environments, but it's recommended to follow proper storage and handling procedures to prevent moisture damage.
  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a low-impedance path to ground for the device's ground pins. A good grounding scheme is essential for optimal performance.
  • To optimize the KC2-11+ for low noise figure and high gain, use a low-noise voltage regulator, ensure a stable power supply, and optimize the input and output matching networks for maximum gain and minimum noise figure.
  • Yes, the KC2-11+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout considerations to ensure proper operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KC2-11+ Overview

Use the download button to access the KC2-11+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KC2-1, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
