KFF6415A - CTS

Description: Signal Conditioning 1087-1093MHz

Download KFF6415A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

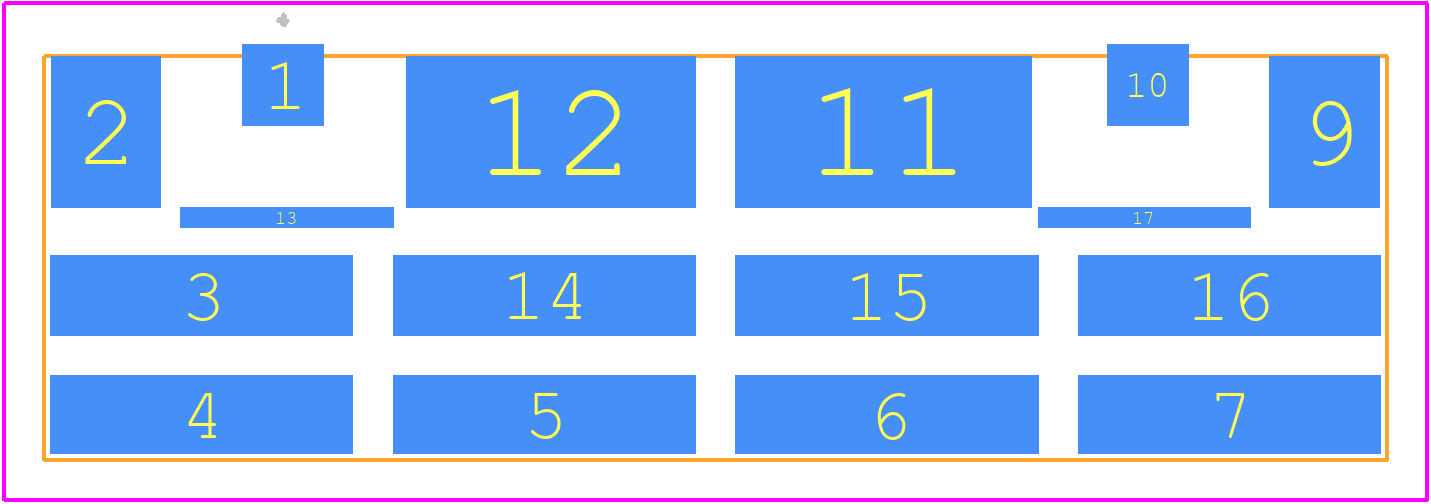

KFF6415A - CTS PCB footprint - Other - Other - KFF6415A-8
click to zoom
3D Models
KFF6415A - CTS  - 3D model - Other - KFF6415A-8
click to zoom

KFF6415A Details

  • Manufacturer Part Number:

    KFF6415A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    6

  • Additional Feature:

    TRAY

  • Attenuation Frequency (+/- delta f)-Max:

    30000 kHz

  • Attenuation@Freq-Max:

    23 dB

  • Average Input Power:

    1 W

  • Center or Cutoff Frequency (fo/fc):

    1090 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    10.109 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • JESD-609 Code:

    e4

  • Length:

    33.58 mm

  • Mounting Type:

    SURFACE MOUNT

  • Terminal Finish:

    Silver (Ag)

  • Width:

    7.85 mm

KFF6415A Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow a 4-layer PCB stackup with a solid ground plane, and to use thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers. Additionally, ensure a minimum of 10 mils of clearance around the device to prevent thermal bridging.
  • To ensure reliable operation across the entire operating temperature range, it's essential to follow the recommended derating curves for power dissipation and voltage. Additionally, ensure that the device is properly soldered and that the PCB is designed to minimize thermal stress.
  • For characterizing the KFF6415A, it's recommended to use a 4-wire Kelvin connection for accurate voltage and current measurements. Use a high-impedance oscilloscope probe to minimize loading effects, and ensure that the measurement setup is properly calibrated and shielded to prevent electromagnetic interference.
  • To prevent ESD damage, handle the device with ESD-protective materials, such as wrist straps, mats, and bags. Ensure that the PCB is properly grounded during assembly, and use ESD-protective devices, such as TVS diodes, to protect the KFF6415A from voltage transients.
  • To prevent moisture-related issues, store the KFF6415A in a dry, cool place, away from direct sunlight and moisture. Use airtight packaging and desiccant bags to maintain a low humidity environment. Avoid exposing the device to temperatures above 30°C and humidity above 60% during storage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KFF6415A Overview

Use the download button to access the KFF6415A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KFF64, or try a keyword search, such as Ceramic Filters
