KIA6210AH - KEC

Description: 22 W BTL Dual Audio Power Amplifier

Download KIA6210AH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

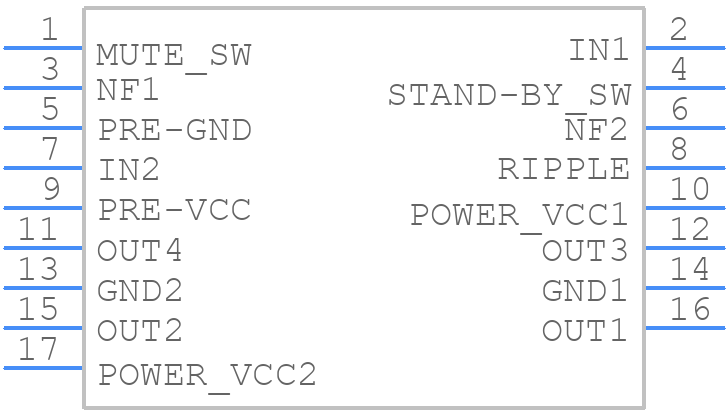

Symbol
KIA6210AH - KEC - PCB symbol
click to zoom

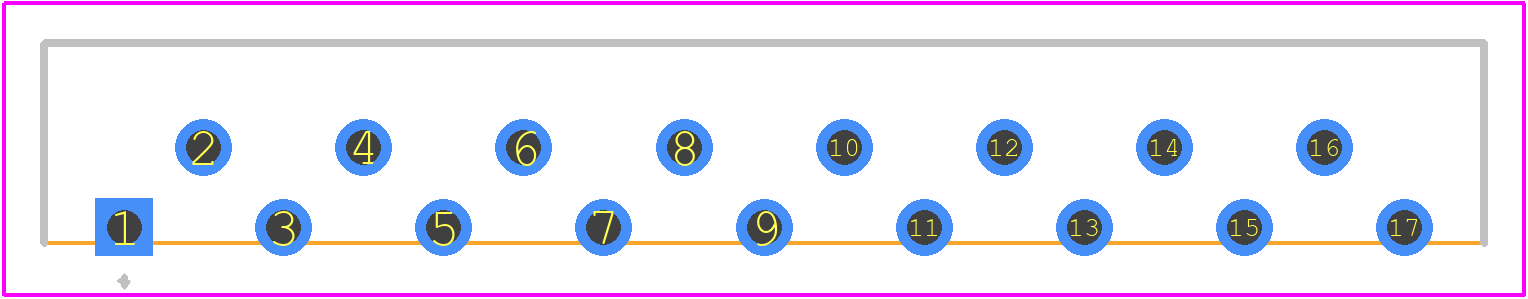

PCB Footprints
KIA6210AH - KEC PCB footprint - Other - Other - KIA6210AH-4
click to zoom
3D Models
KIA6210AH - KEC - 3D model - Other - KIA6210AH-4
click to zoom

KIA6210AH Details

  • Manufacturer Part Number:

    KIA6210AH

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    KEC

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PZIP-T17

  • JESD-609 Code:

    e0

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP17,.08,.1,80

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    250 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2 mm

  • Terminal Position:

    ZIG-ZAG

KIA6210AH Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the KIA6210AH is -40°C to 125°C, although the datasheet only mentions the storage temperature range.
  • To ensure the stability of the output voltage, it's recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm, as well as to follow the recommended PCB layout and thermal design guidelines.
  • Although the datasheet specifies a maximum input voltage of 18V, the KIA6210AH can withstand up to 20V for a short duration (less than 100ms) without damage, but continuous operation above 18V is not recommended.
  • The power dissipation of the KIA6210AH can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
  • The EN (enable) pin is used to turn the regulator on or off. When the EN pin is pulled low, the regulator is disabled, and the output voltage is turned off. When the EN pin is pulled high, the regulator is enabled, and the output voltage is turned on.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KIA6210AH Overview

Use the download button to access the KIA6210AH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KIA62, or try a keyword search, such as Audio/Video Amplifiers
