KIA6283K - KEC

Description: Bipolar linear integrated circuit{0000}

Download KIA6283K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

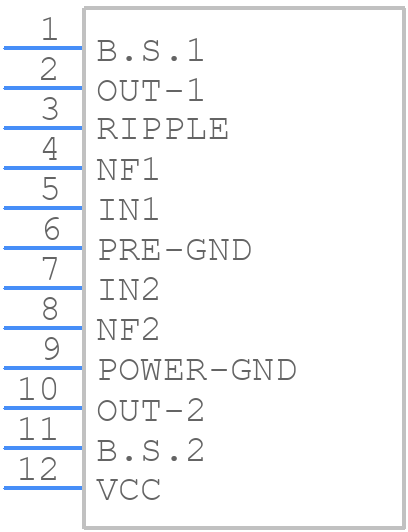

KIA6283K - KEC - PCB symbol
click to zoom
PCB Footprints
KIA6283K - KEC PCB footprint - Other - Other - KIA6283K-3
click to zoom
3D Models
KIA6283K - KEC - 3D model - Other - KIA6283K-3
click to zoom

KIA6283K Details

  • Manufacturer Part Number:

    KIA6283K

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SFM

  • Package Description:

    SSIP-12

  • Pin Count:

    12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    KEC

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO PREAMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PSFM-T12

  • JESD-609 Code:

    e0

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Power-Nom:

    4.6 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SFM

  • Package Equivalence Code:

    SIP12,.07TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

KIA6283K Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the KIA6283K is 4.5V to 18V, although the absolute maximum rating is 20V.
  • To protect the KIA6283K from overvoltage, use a voltage regulator or a zener diode to clamp the input voltage to a safe level, and consider adding a TVS (Transient Voltage Suppressor) diode for additional protection.
  • The maximum power dissipation of the KIA6283K is 1.5W, and it's essential to ensure the device is properly heat-sinked to prevent overheating.
  • The KIA6283K is rated for operation up to 125°C, but it's essential to derate the power dissipation accordingly to prevent overheating and ensure reliable operation.
  • Choose capacitor values based on the specific application requirements, considering factors such as input voltage, output voltage, and desired ripple voltage. A general guideline is to use capacitors with a minimum capacitance of 10uF for the input and output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KIA6283K Overview

Use the download button to access the KIA6283K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KIA62, or try a keyword search, such as Audio/Video Amplifiers
