KLDHCX-0202-B - Kycon

Description: DC Power Connectors 2.5MM DIA HIGH CURRENT

Download KLDHCX-0202-B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KLDHCX-0202-B - Kycon - PCB symbol
click to zoom
PCB Footprints

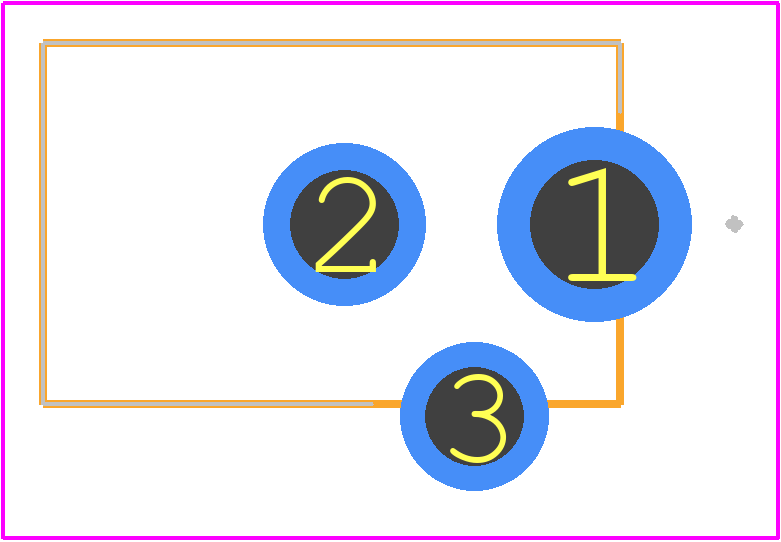

KLDHCX-0202-B - Kycon PCB footprint - Other - Other - KLDHCX-0202-B-3
click to zoom
3D Models
KLDHCX-0202-B - Kycon - 3D model - Other - KLDHCX-0202-B-3
click to zoom

KLDHCX-0202-B Details

  • Manufacturer Part Number:

    KLDHCX-0202-B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Kycon Inc

  • YTEOL:

    6.25

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    16 V

  • Termination Type:

    SOLDER

KLDHCX-0202-B Frequently Asked Questions (FAQs)

  • The recommended torque for the KLDHCX-0202-B connector is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the KLDHCX-0202-B is designed to withstand high-vibration environments, making it suitable for industrial and automotive applications.
  • The KLDHCX-0202-B operates within a temperature range of -40°C to 105°C (-40°F to 221°F).
  • The KLDHCX-0202-B has an IP67 rating, making it suitable for use in harsh environments, including exposure to water and chemicals.
  • The KLDHCX-0202-B has a mating cycle life of 500 cycles, ensuring reliable connections over an extended period.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KLDHCX-0202-B Overview

Use the download button to access the KLDHCX-0202-B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KLDHC, or try a keyword search, such as DC Power Plugs or Jacks
