The recommended operating temperature range for the KLI-8023-RAA-ED-AA is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure proper soldering and mounting, follow the recommended land pattern and soldering guidelines provided in the datasheet. Additionally, use a soldering iron with a temperature range of 250°C to 260°C, and apply a moderate amount of soldering flux to prevent oxidation.
The maximum allowable voltage for the KLI-8023-RAA-ED-AA's input pins is 5.5V, as specified in the datasheet. Exceeding this voltage may cause permanent damage to the device.
To prevent electrostatic discharge (ESD) damage, handle the KLI-8023-RAA-ED-AA with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that the device is stored in its original packaging or an ESD-protective container when not in use.
The recommended power-up sequence for the KLI-8023-RAA-ED-AA is to apply the power supply voltage (VCC) before applying any input signals. This ensures that the device is properly initialized and configured before receiving input signals.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KLI-8023-RAA-ED-AA Overview

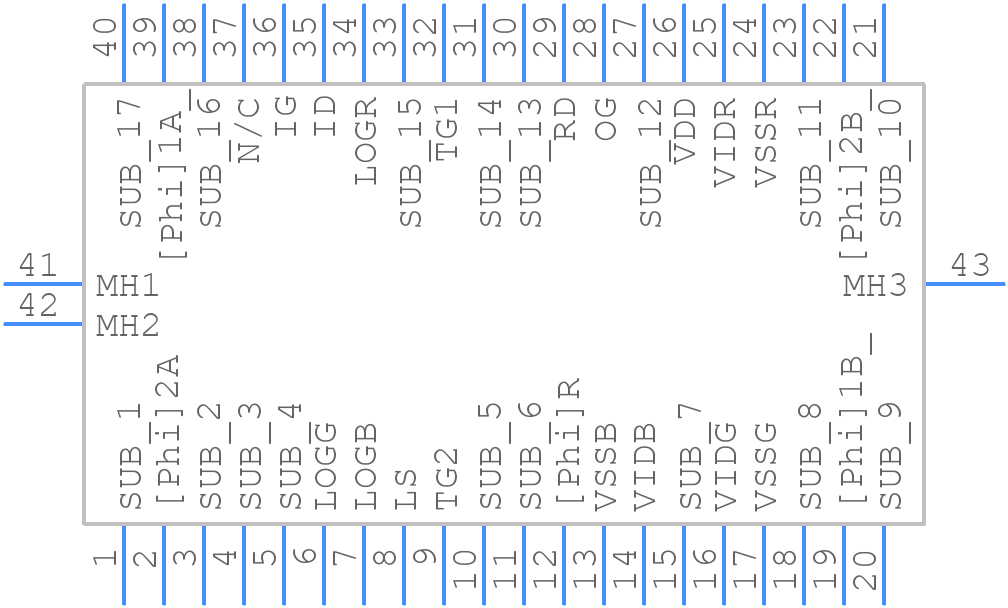

Use the download button to access the KLI-8023-RAA-ED-AA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KLI-8,
or try a keyword search, such as Image Sensors
