KLP42X-61-WW/RR - Kycon

Description: RCA Phono Connectors PCB STACKED 2X2 WHT WHT OVR RED RED

Download KLP42X-61-WW/RR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KLP42X-61-WW/RR - Kycon - PCB symbol
click to zoom
PCB Footprints

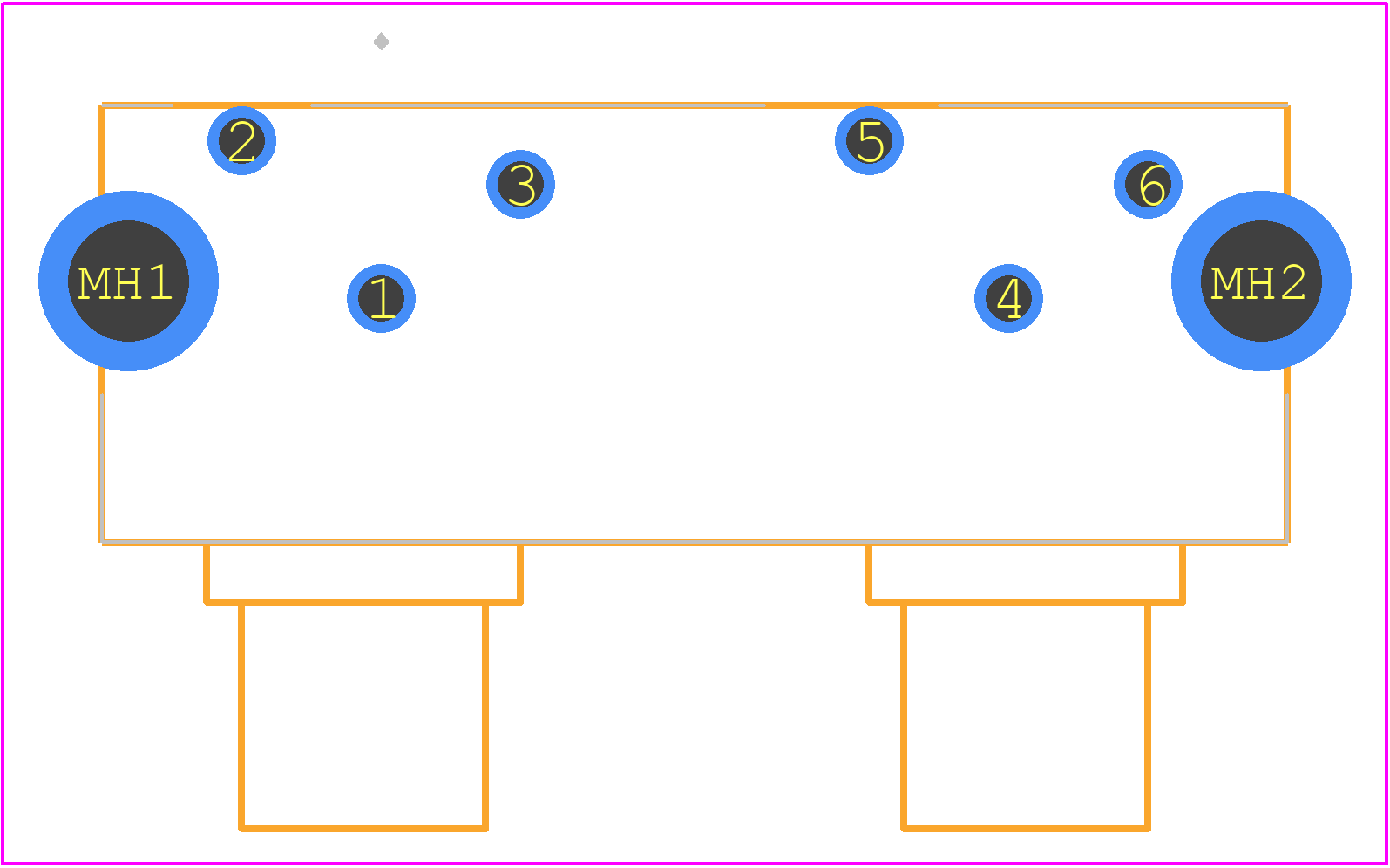

KLP42X-61-WW/RR - Kycon PCB footprint - Other - Other - KLP42X-61-WW/RR-2
click to zoom
3D Models
KLP42X-61-WW/RR - Kycon - 3D model - Other - KLP42X-61-WW/RR-2
click to zoom

KLP42X-61-WW/RR Details

  • Manufacturer Part Number:

    KLP42X-61-WW/RR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Kycon Inc

  • YTEOL:

    7.98

  • Additional Feature:

    94V-0

  • Body/Shell Style:

    JACK

  • Configuration:

    2X2 HORIZONTAL

  • Connector Type:

    RCA

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Poles:

    1

  • Number of Ports:

    4

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

KLP42X-61-WW/RR Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the KLP42X-61-WW/RR connector is 500 cycles.
  • Yes, the KLP42X-61-WW/RR connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial, automotive, and aerospace.
  • The operating temperature range for the KLP42X-61-WW/RR connector is -40°C to 105°C.
  • Yes, the KLP42X-61-WW/RR connector is RoHS and REACH compliant, making it suitable for use in European Union countries.
  • The recommended torque for the KLP42X-61-WW/RR connector's screw locks is 0.5 Nm to 1.5 Nm.
