KMS15A-9 - TDK Lambda

Description: AC-DC Power Supplies, PCB Mount, Output: 15W, 9V, for medical equipment, Class II input

Download KMS15A-9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KMS15A-9 - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

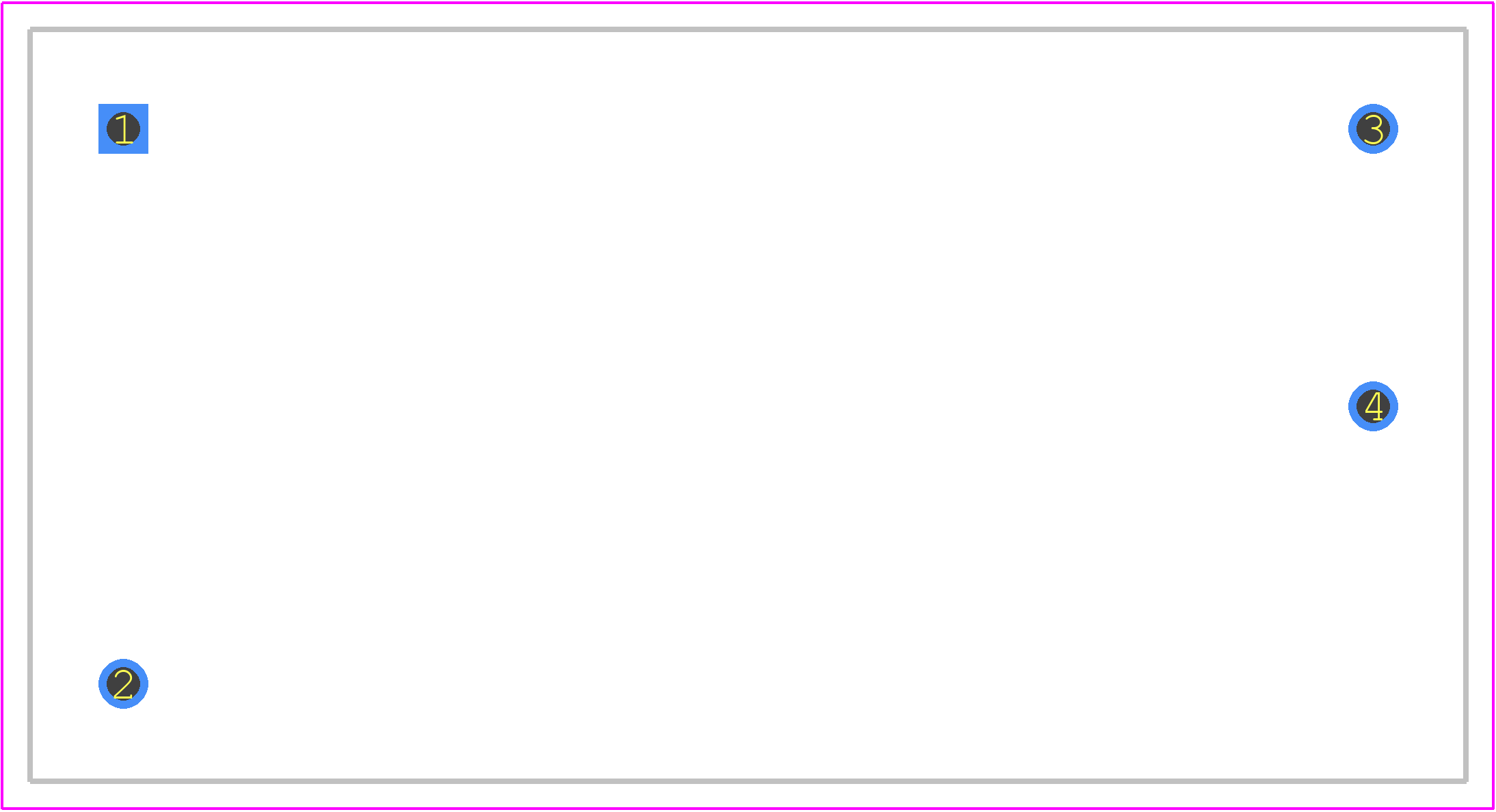

KMS15A-9 - TDK Lambda PCB footprint - Other - Other - KMS15A-9
click to zoom
3D Models
KMS15A-9 - TDK Lambda - 3D model - Other - KMS15A-9
click to zoom

KMS15A-9 Details

  • Manufacturer Part Number:

    KMS15A-9

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

KMS15A-9 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the KMS15A-9 is -20°C to +71°C, with derating above 50°C.
  • Yes, the KMS15A-9 is designed to operate in a humid environment, with a relative humidity of up to 95% non-condensing.
  • The KMS15A-9 can operate up to an altitude of 3,000 meters (10,000 feet) without derating.
  • Yes, the KMS15A-9 is designed to meet the requirements for use in a Class I, Division 2 hazardous location.
  • The typical efficiency of the KMS15A-9 is around 85%, depending on the input voltage and output load.
