KMS30A-12 - TDK Lambda

Description: AC-DC Power Supplies, PCB Mount, Output: 30W, 12V, for medical equipment, Class II input

Download KMS30A-12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KMS30A-12 - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

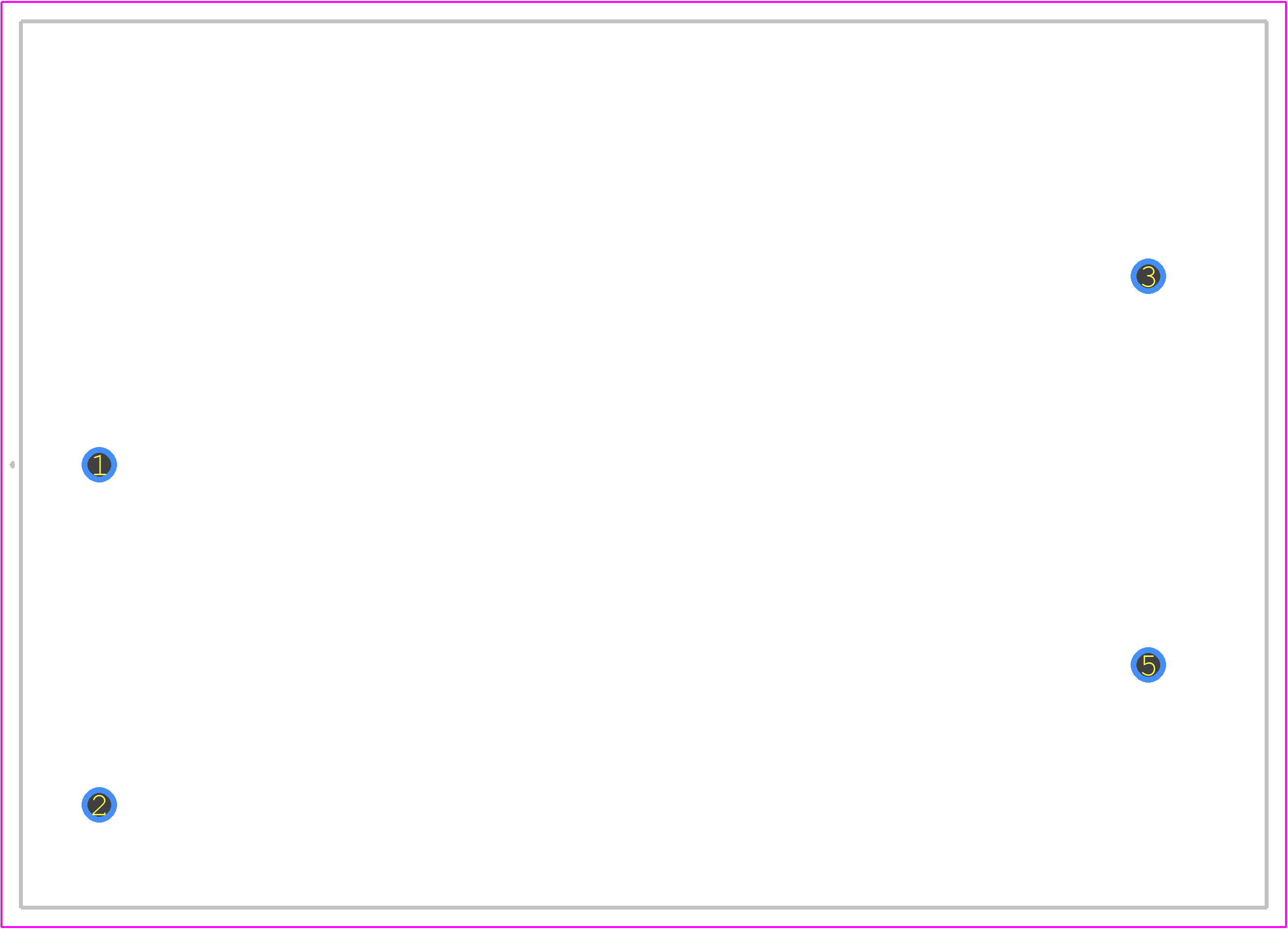

KMS30A-12 - TDK Lambda PCB footprint - Other - Other - KMS30A-24-2
click to zoom
3D Models
KMS30A-12 - TDK Lambda - 3D model - Other - KMS30A-24-2
click to zoom

KMS30A-12 Details

  • Manufacturer Part Number:

    KMS30A-12

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

KMS30A-12 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the KMS30A-12 is -20°C to +71°C, with derating above 50°C.
  • Yes, the KMS30A-12 is designed to operate in a humid environment, but it's recommended to follow the derating guidelines for humidity levels above 60% RH.
  • The recommended input voltage range for the KMS30A-12 is 100-240VAC, with a tolerance of ±10%.
  • Yes, the KMS30A-12 can be used in a redundant configuration, but it's recommended to follow the manufacturer's guidelines for parallel operation and to ensure that the total output current does not exceed the maximum rating.
  • The typical efficiency of the KMS30A-12 is around 85-90%, depending on the input voltage and output load.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KMS30A-12 Overview

Use the download button to access the KMS30A-12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KMS30, or try a keyword search, such as Power Supply Modules
