KMZ60,115 - NXP

Description: NXP - KMZ60,115 - ANGLE SENSOR, AEC-Q100, AMR, SOIC-8

Download KMZ60,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

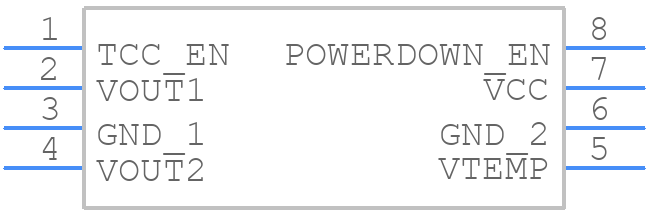

Symbol
KMZ60,115 - NXP - PCB symbol
click to zoom
PCB Footprints
KMZ60,115 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - KMZ60,115
click to zoom
3D Models
KMZ60,115 - NXP - 3D model - Small Outline Packages - KMZ60,115
click to zoom

KMZ60,115 Details

  • Manufacturer Part Number:

    KMZ60,115

  • Source Url Status Check Date:

    2013-06-14 00:00:00

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT96-1

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Circuit Type:

    SINGLE-ENDED

  • Output Range:

    0.189-2.511V

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    ANGLE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

KMZ60,115 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the KMZ60,115 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and minimizing thermal resistance.
  • The recommended storage condition for the KMZ60,115 is in a dry, cool place, away from direct sunlight, with a relative humidity of 60% or less, and at a temperature range of 20°C to 30°C.
  • Yes, the KMZ60,115 is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and soldering techniques to ensure the device's reliability.
  • To prevent ESD damage, handle the KMZ60,115 with anti-static wrist straps, mats, or other ESD protection devices. Ensure that all equipment and tools are properly grounded, and avoid touching the device's pins or leads.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KMZ60,115 Overview

Use the download button to access the KMZ60,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KMZ60, or try a keyword search, such as Other Sensors/Transducers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
