KP215F1701 - Infineon

Description: Board Mount Pressure Sensors Analog Absolute Pressure Sensor002

Download KP215F1701 Model

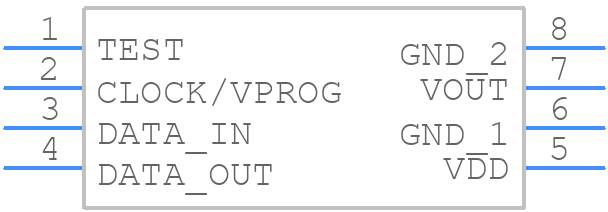

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
KP215F1701 - Infineon PCB footprint - Other - Other - KP215F1701-3
click to zoom
3D Models
KP215F1701 - Infineon  - 3D model - Other - KP215F1701-3
click to zoom

KP215F1701 Details

  • Manufacturer Part Number:

    KP215F1701

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    GREEN, PLASTIC, SOF-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    11

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-F8

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOF

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    FLAT

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

KP215F1701 Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow Infineon's guidelines for PCB layout and thermal management. This includes using a multi-layer PCB with a solid ground plane, placing thermal vias under the device, and using a heat sink with a thermal interface material. Additionally, ensure good airflow around the device and avoid thermal hotspots.
  • To ensure EMC and reduce EMI, follow Infineon's guidelines for PCB layout, component placement, and shielding. Use a shielded enclosure, and consider using EMI filters or common-mode chokes. Also, ensure proper grounding and decoupling of the device.
  • Monitor the device's junction temperature (TJ), output current, and voltage to prevent overheating and ensure reliability. Implement over-temperature protection, over-current protection, and under-voltage lockout (UVLO) to prevent damage to the device.
  • Optimize the device's performance by selecting the appropriate operating frequency, dead-time, and gate resistance. Consider using Infineon's simulation tools and application notes for specific application guidance. Additionally, consult with Infineon's support team or a qualified engineer for customized optimization.
  • Perform thorough testing and validation of the device, including functional testing, thermal testing, and reliability testing. Use Infineon's recommended test procedures and consider using third-party testing and validation services to ensure compliance with industry standards and regulations.
