A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
Ensure proper heat sinking, use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK, and follow the recommended PCB layout guidelines. Also, consider using a thermocouple to monitor the device temperature.
Exceeding the maximum Tj rating can lead to reduced lifespan, decreased performance, and potentially catastrophic failure. It's essential to ensure the device operates within the specified temperature range to maintain reliability and performance.
Use ESD-protective packaging, wrist straps, and mats during handling and assembly. Ensure that all personnel handling the device are grounded, and use ESD-protected workstations and tools.
Store the device in a dry, cool place (20°C to 30°C, 60% to 90% relative humidity). Avoid exposure to direct sunlight, moisture, and extreme temperatures. Handle the device by the body, not the pins, to prevent damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KP229E3111XTMA1 Overview

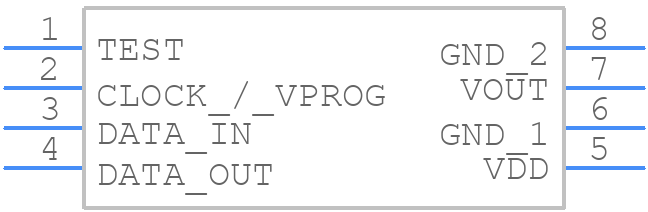

Use the download button to access the KP229E3111XTMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KP229,
or try a keyword search, such as Pressure Sensors
