KP253XTMA2 - Infineon

Description: Board Mount Pressure Sensors INTEGRATED PRESSURE SENS

Download KP253XTMA2 Model

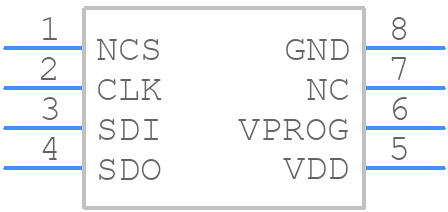

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
KP253XTMA2 - Infineon PCB footprint - Other - Other - PG-DSOF-8-16_2023
click to zoom
3D Models
KP253XTMA2 - Infineon  - 3D model - Other - PG-DSOF-8-16_2023
click to zoom

KP253XTMA2 Details

  • Manufacturer Part Number:

    KP253XTMA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GREEN, PLASTIC, SOP-8

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO HAS SUPPLY VOLTAGE 4.75 TO 5.25 V

  • Body Breadth:

    7 mm

  • Body Height:

    2.8 mm

  • Body Length or Diameter:

    7 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    SPI INTERFACE

  • Output Range:

    0.4-2.9V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    HOLE

  • Pressure Range-Max:

    23.931 Psi

  • Pressure Range-Min:

    8.702 Psi

  • Pressure Sensing Mode:

    BAROMETRIC

  • Sensors/Transducers Type:

    PRESSURE SENSOR,CAPACITIVE

  • Supply Voltage-Max:

    3.475 V

  • Supply Voltage-Min:

    3.135 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

KP253XTMA2 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling system. Monitor junction temperature and adjust the system design accordingly.
  • Monitor the device's temperature, voltage, and current. Implement over-temperature protection (OTP), over-voltage protection (OVP), and over-current protection (OCP) to prevent damage.
  • Use a low-impedance gate driver circuit with a high-current capability. Ensure a short gate resistor (Rg) and a low-inductance layout to minimize switching losses.
  • Handle the device by the body, not the leads. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD). Avoid touching the device's pins or exposed internal components.
