KPB-2012SURKCGKC - Kingbright

Description: LED Bi-Color Green/Red 574nm/650nm Chip LED 2-Pin SMD T/R

Download KPB-2012SURKCGKC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

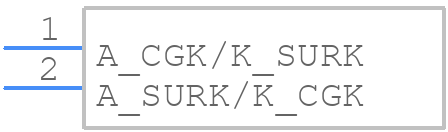

KPB-2012SURKCGKC - Kingbright - PCB symbol
click to zoom
PCB Footprints
KPB-2012SURKCGKC - Kingbright PCB footprint - Other - Other - 2.0x1.25x1.1mm
click to zoom
3D Models
KPB-2012SURKCGKC - Kingbright - 3D model - Other - 2.0x1.25x1.1mm
click to zoom

KPB-2012SURKCGKC Details

  • Manufacturer Part Number:

    KPB-2012SURKCGKC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED/GREEN

  • Configuration:

    COMMON BIPOLAR TERMINAL, 2 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Lens Type:

    WATER CLEAR

  • Luminous Intensity-Nom:

    200.0/55.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DUAL COLOR LED

  • Overall Height:

    1.1 mm

  • Packing Method:

    TR, 7 INCH

  • Peak Wavelength:

    650/574 nm

  • Shape:

    RECTANGULAR

  • Size:

    1.3 mm

  • Surface Mount:

    YES

  • Terminal Pitch:

    2.35 mm

  • Viewing Angle:

    150 deg

KPB-2012SURKCGKC Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the KPB-2012SURKCGKC is -30°C to 60°C.
  • Yes, the KPB-2012SURKCGKC is suitable for indoor and outdoor applications, but it's essential to ensure proper sealing and protection from environmental factors like moisture and UV radiation.
  • The maximum forward current rating for the KPB-2012SURKCGKC is 20mA. Exceeding this rating may reduce the LED's lifespan or cause damage.
  • Yes, the KPB-2012SURKCGKC is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The typical viewing angle for the KPB-2012SURKCGKC is 120°, but this may vary depending on the specific application and environmental conditions.
