KPTBD-3216SURKCGKC - Kingbright

Description: 2.5 V Green & Red LED 3216 (1206) SMD, Kingbright KPTBD-3216SURKCGKC

Download KPTBD-3216SURKCGKC Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KPTBD-3216SURKCGKC model

Email notifications will be applied after download.

Send part feedback

Symbol

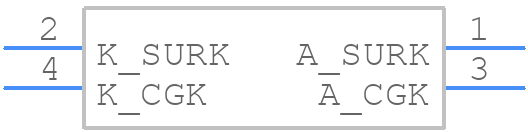

KPTBD-3216SURKCGKC - Kingbright - PCB symbol

PCB Footprints

KPTBD-3216SURKCGKC - Kingbright PCB footprint - Other - Other - KPTBD-3216SURKCGKC-4

3D Models

KPTBD-3216SURKCGKC - Kingbright - 3D model - Other - KPTBD-3216SURKCGKC-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for KPTBD-3216SURKCGKC
Part Number KPTBD-3216SURKCGKC
Manufacturer Kingbright
Pin Count 4
Part Category LED
Package Category Other
Footprint Name Other - KPTBD-3216SURKCGKC-4
Released Date Jul 24, 2019
Last Modified Date Nov 28, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

KPTBD-3216SURKCGKC Details

Manufacturer Part Number:
KPTBD-3216SURKCGKC
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
6
Color:
HYPER RED/GREEN
Configuration:
SEPARATE, 2 ELEMENTS
Forward Current-Max:
0.03 A
Forward Voltage-Max:
2.5 V
Lens Type:
WATER CLEAR
Luminous Intensity-Nom:
1500.0/250.0 mcd
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
4
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
DUAL COLOR LED
Overall Height:
1.8 mm
Packing Method:
TR, 7 INCH
Peak Wavelength:
645/574 nm
Reverse Voltage-Max:
5 V
Shape:
ROUND
Size:
1.6 mm
Surface Mount:
YES
Terminal Pitch:
3.2 mm
Viewing Angle:
30 deg

KPTBD-3216SURKCGKC Frequently Asked Questions (FAQs)

The recommended storage temperature range for the KPTBD-3216SURKCGKC is -20°C to 40°C.
Yes, the KPTBD-3216SURKCGKC is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
The maximum operating temperature range for the KPTBD-3216SURKCGKC is -20°C to 80°C.
Yes, the KPTBD-3216SURKCGKC is designed to operate in humid environments, but it's recommended to use a protective coating or enclosure to prevent moisture damage.
The recommended soldering temperature for the KPTBD-3216SURKCGKC is 260°C for 3 seconds or less.
