KPTBD-3216SURKZGC - Kingbright

Description: 2.5 V, 4.1 V Green & Red LED 3216 (1206) SMD, Kingbright KPTBD-3216SURKZGC

Download KPTBD-3216SURKZGC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

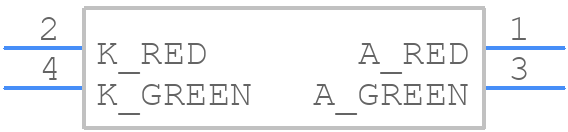

KPTBD-3216SURKZGC - Kingbright - PCB symbol
click to zoom
PCB Footprints
KPTBD-3216SURKZGC - Kingbright PCB footprint - Other - Other - KPTBD-3216SURKZGC-2
click to zoom
3D Models
KPTBD-3216SURKZGC - Kingbright - 3D model - Other - KPTBD-3216SURKZGC-2
click to zoom

KPTBD-3216SURKZGC Details

  • Manufacturer Part Number:

    KPTBD-3216SURKZGC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED/GREEN

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.5 V

  • Lens Type:

    WATER CLEAR

  • Luminous Intensity-Nom:

    1500.0/1000.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DUAL COLOR LED

  • Overall Height:

    1.8 mm

  • Packing Method:

    TR, 7 INCH

  • Peak Wavelength:

    645/515 nm

  • Reverse Voltage-Max:

    5 V

  • Shape:

    ROUND

  • Size:

    1.6 mm

  • Surface Mount:

    YES

  • Terminal Pitch:

    3.2 mm

  • Viewing Angle:

    30 deg
