KSZ8001L - Microchip

Description: Microchip KSZ8001L 10/100BASE-TX/FX Ethernet Transceiver, 1.8 V, 3.3 V, 48-Pin LQFP

Download KSZ8001L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

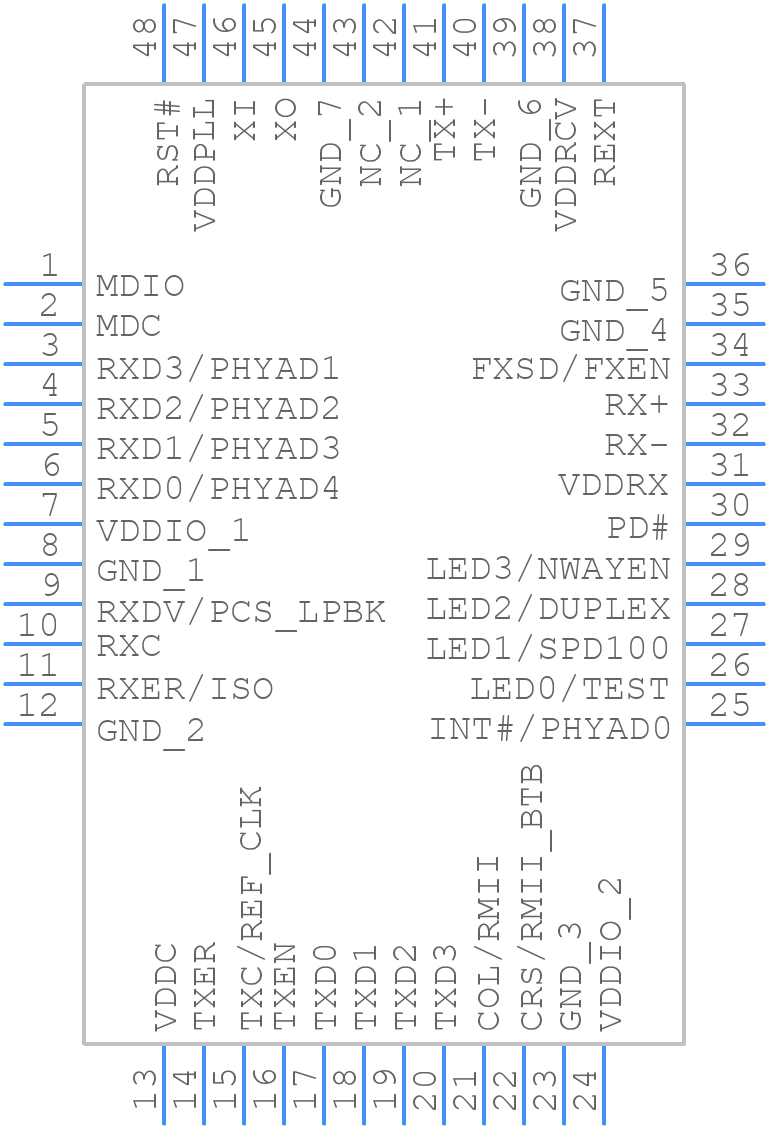

KSZ8001L - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8001L - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 48 LEAD LQFP_1
click to zoom
3D Models
KSZ8001L - Microchip - 3D model - Quad Flat Packages - 48 LEAD LQFP_1
click to zoom

KSZ8001L Details

  • Manufacturer Part Number:

    KSZ8001L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    LQFP-48

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

KSZ8001L Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The layout should also ensure that the analog and digital signals are separated to minimize noise and interference.
  • Ensure that the device is operated within the recommended temperature range (-40°C to 85°C). Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Also, consider using a thermal interface material to improve heat transfer.
  • The recommended power-up sequence is to apply power to the VDD pin first, followed by the VCC pin. This ensures that the internal voltage regulators are powered up correctly.
  • Use a logic analyzer or oscilloscope to monitor the device's signals and identify any issues. Check the device's power supply, clock signals, and data transmission/reception. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the KSZ8001L can be used in redundant or backup systems. However, ensure that the device is properly configured and synchronized with the primary system to avoid data corruption or loss.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8001L Overview

Use the download button to access the KSZ8001L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces
