KSZ8041FTL-TR - Microchip

Description: Ethernet ICs 10/100 BASE-FX Physical Layer Transceiver

Download KSZ8041FTL-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

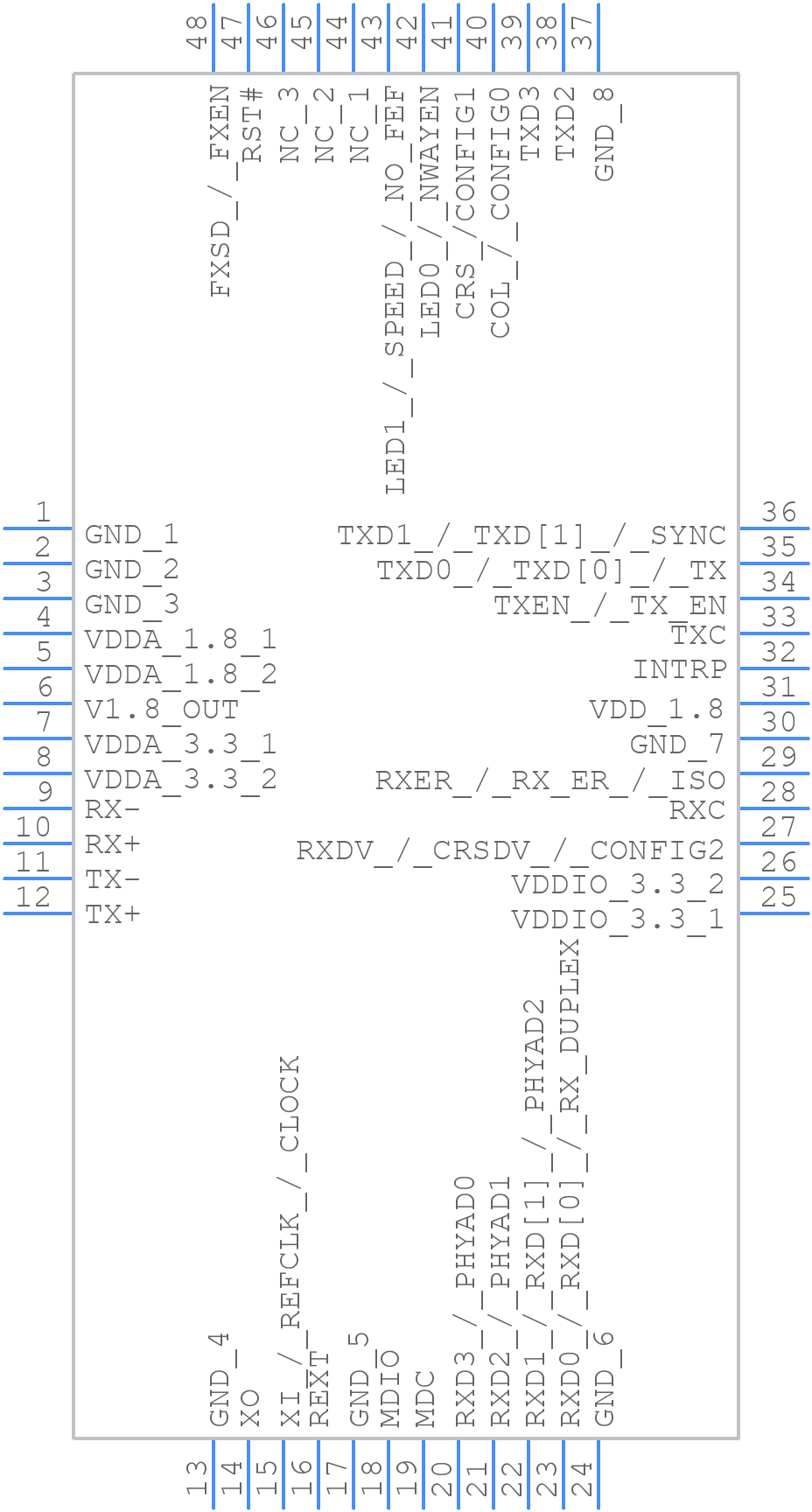

KSZ8041FTL-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8041FTL-TR - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 48 LEAD LQFP_1
click to zoom
3D Models
KSZ8041FTL-TR - Microchip - 3D model - Quad Flat Packages - 48 LEAD LQFP_1
click to zoom

KSZ8041FTL-TR Details

  • Manufacturer Part Number:

    KSZ8041FTL-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    TQFP-48

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2017-07-11

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    10

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    58.3 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

KSZ8041FTL-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8041FTL-TR can be found in the Microchip application note AN-2054, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The KSZ8041FTL-TR can be configured for different network topologies using the Microchip LANCheck online tool or by consulting the device's datasheet and application notes. The tool provides a graphical interface to configure the device for specific network topologies, such as star, bus, or ring topologies.
  • The KSZ8041FTL-TR has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device's junction temperature below 125°C. Thermal management considerations include providing adequate heat sinking, using thermal vias, and ensuring good airflow around the device.
  • Troubleshooting issues with the KSZ8041FTL-TR can be done using a combination of tools and techniques, including using a logic analyzer or oscilloscope to capture and analyze signals, checking the device's configuration and register settings, and consulting the device's datasheet and application notes for guidance.
  • The KSZ8041FTL-TR is designed to meet the electromagnetic compatibility (EMC) and electromagnetic interference (EMI) requirements of various regulatory bodies. To ensure compliance, it is recommended to follow proper PCB design and layout practices, use shielding and filtering as needed, and consult the device's datasheet and application notes for guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8041FTL-TR Overview

Use the download button to access the KSZ8041FTL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
