KSZ8041NL-TR - Microchip

Description: Ethernet ICs 10/100 BASE-TX Physical Layer Transceiver

Download KSZ8041NL-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

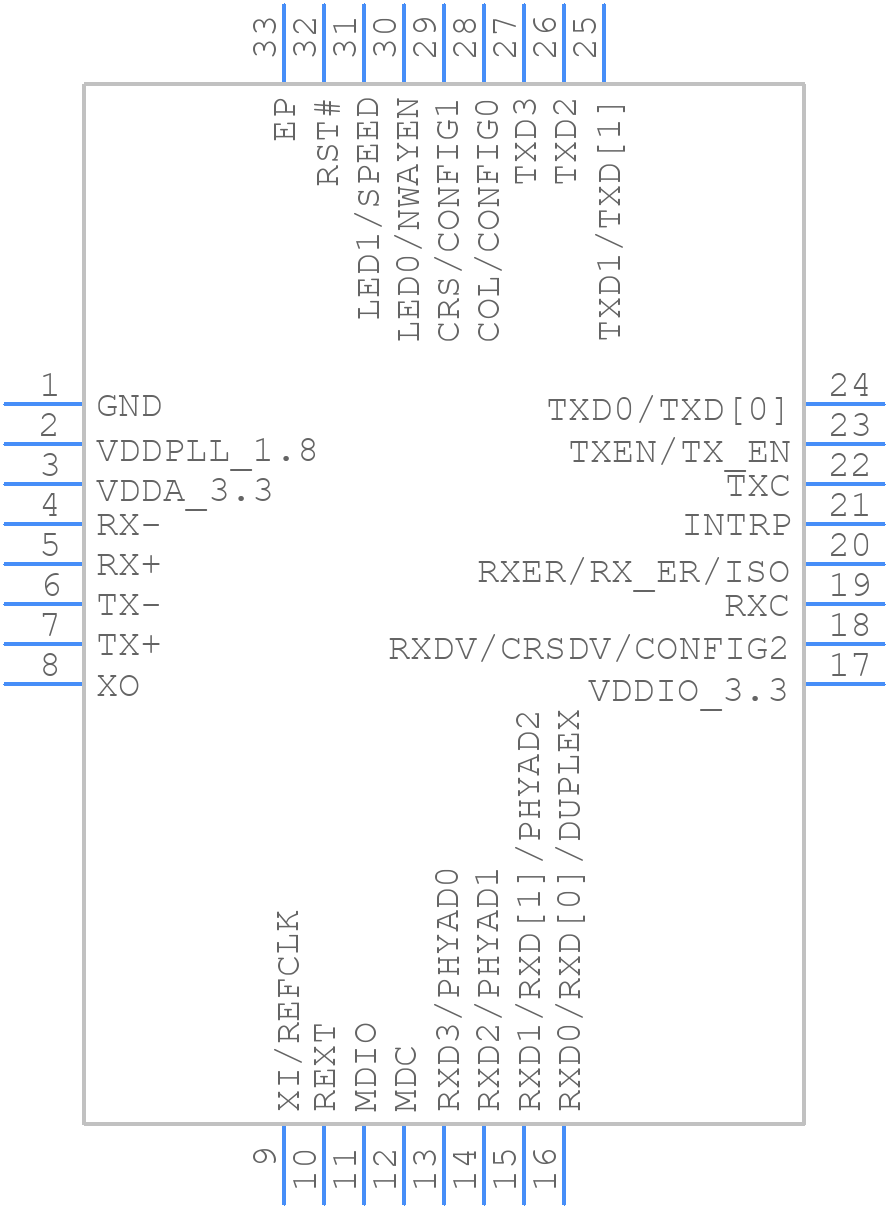

KSZ8041NL-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8041NL-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 Pin QFN_1
click to zoom
3D Models
KSZ8041NL-TR - Microchip - 3D model - Quad Flat No-Lead - 32 Pin QFN_1
click to zoom

KSZ8041NL-TR Details

  • Manufacturer Part Number:

    KSZ8041NL-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN, LCC32,.2SQ,20

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

KSZ8041NL-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8041NL-TR can be found in the Microchip application note AN2054, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The KSZ8041NL-TR can be configured for half-duplex or full-duplex operation by setting the appropriate registers. For half-duplex operation, set the HDX pin high and configure the TXEN and RXEN pins accordingly. For full-duplex operation, set the HDX pin low and configure the TXEN and RXEN pins accordingly. Refer to the datasheet for specific register settings.
  • The maximum cable length supported by the KSZ8041NL-TR is 100 meters, as per the IEEE 802.3u standard for Fast Ethernet. However, the actual cable length may vary depending on the specific application and environmental conditions.
  • To troubleshoot issues with the KSZ8041NL-TR, start by checking the power supply voltage, clock frequency, and reset signal. Verify that the device is properly configured and that the registers are set correctly. Use a logic analyzer or oscilloscope to monitor the signal lines and identify any errors or anomalies. Refer to the datasheet and application notes for troubleshooting guidelines and FAQs.
  • Yes, the KSZ8041NL-TR is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and automotive applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8041NL-TR Overview

Use the download button to access the KSZ8041NL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces
