KSZ8041NLI-TR - Microchip

Description: Ethernet ICs 10/100 BASE-TX Physical Layer Transceiver

Download KSZ8041NLI-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

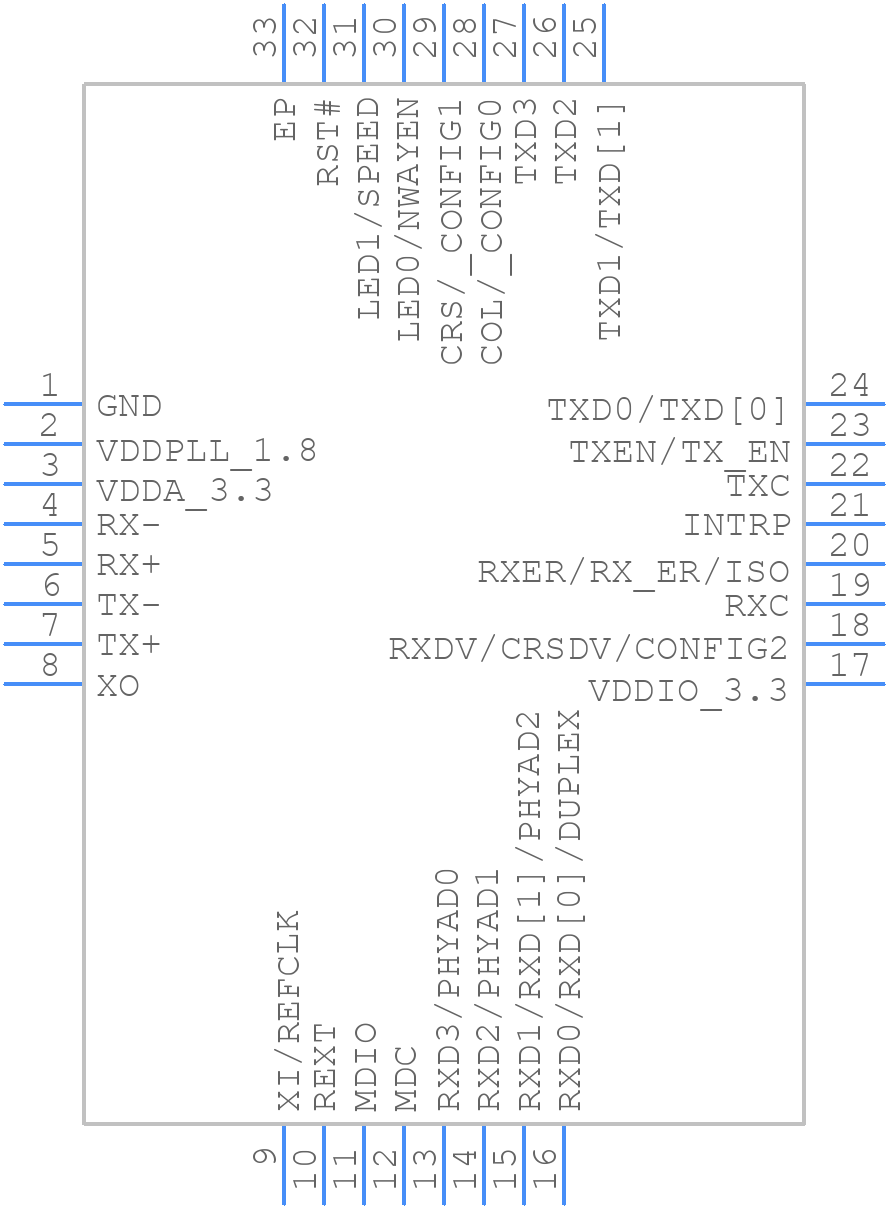

KSZ8041NLI-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8041NLI-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Pin (5mm x 5mm) QFN
click to zoom
3D Models
KSZ8041NLI-TR - Microchip - 3D model - Quad Flat No-Lead - 32-Pin (5mm x 5mm) QFN
click to zoom

KSZ8041NLI-TR Details

  • Manufacturer Part Number:

    KSZ8041NLI-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, LEAD FREE, QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

KSZ8041NLI-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8041NLI-TR can be found in the Microchip application note AN-2054, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The KSZ8041NLI-TR can be configured for different network topologies using the Microchip LANCheck online tool or by using the KSZ8041NLI-TR evaluation board. The tool or evaluation board provides a graphical user interface to configure the device for specific network topologies, such as star, bus, or tree topologies.
  • The maximum cable length supported by the KSZ8041NLI-TR is 100 meters, which is the standard maximum length for Ethernet cables. However, the actual cable length may vary depending on the specific application and environmental conditions.
  • To troubleshoot issues with the KSZ8041NLI-TR, engineers can use the Microchip LANCheck online tool or the KSZ8041NLI-TR evaluation board to diagnose and debug the device. Additionally, Microchip provides a comprehensive troubleshooting guide in the KSZ8041NLI-TR datasheet and application notes.
  • Yes, the KSZ8041NLI-TR is compatible with industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and harsh environment applications.
