KSZ8051RNLUB-TR-VAO - Microchip

Description: 10/100Base-T/TX Automotive Ethernet physical-layer transceiver

Download KSZ8051RNLUB-TR-VAO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

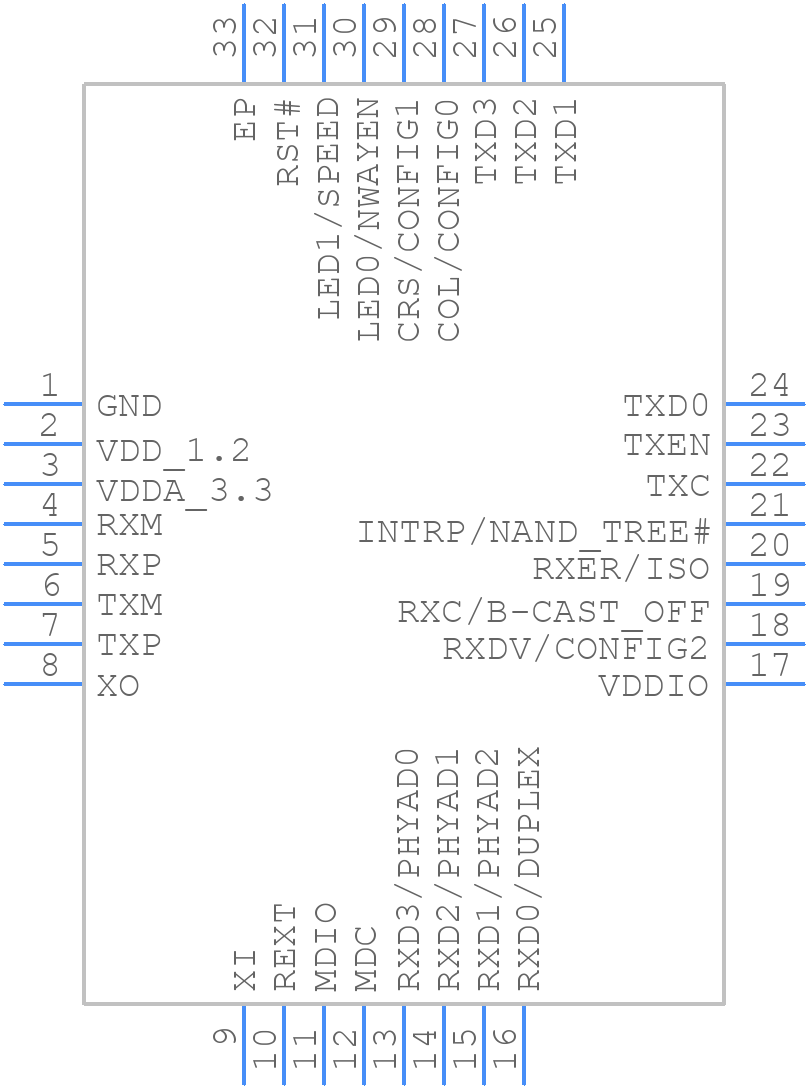

KSZ8051RNLUB-TR-VAO - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8051RNLUB-TR-VAO - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 LEAD QFN
click to zoom
3D Models
KSZ8051RNLUB-TR-VAO - Microchip - 3D model - Quad Flat No-Lead - 32 LEAD QFN
click to zoom

KSZ8051RNLUB-TR-VAO Details

  • Manufacturer Part Number:

    KSZ8051RNLUB-TR-VAO

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    20

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

KSZ8051RNLUB-TR-VAO Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the KSZ8051RNLUB-TR-VAO evaluation board design files, which can be downloaded from the Microchip website. The layout includes guidelines for component placement, routing, and thermal management.
  • The KSZ8051RNLUB-TR-VAO is a highly configurable device, and configuration depends on the specific network application. Microchip provides a software development kit (SDK) and application notes that provide guidance on configuring the device for various applications, such as Ethernet, IEEE 1588, and industrial automation.
  • The KSZ8051RNLUB-TR-VAO supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application, cable quality, and environmental conditions.
  • Microchip provides a range of troubleshooting tools and resources, including a debug tool, application notes, and FAQs. Engineers can also contact Microchip's technical support team for assistance with troubleshooting and debugging.
  • Yes, the KSZ8051RNLUB-TR-VAO is rated for industrial temperature ranges, with an operating temperature range of -40°C to +85°C. However, engineers should ensure that the device is properly designed and tested for their specific industrial application.
