KSZ8061MNXI-TR - Microchip

Description: Ethernet ICs 10/100 Base-TX/FX Quiet-Wire x-ceiver

Download KSZ8061MNXI-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

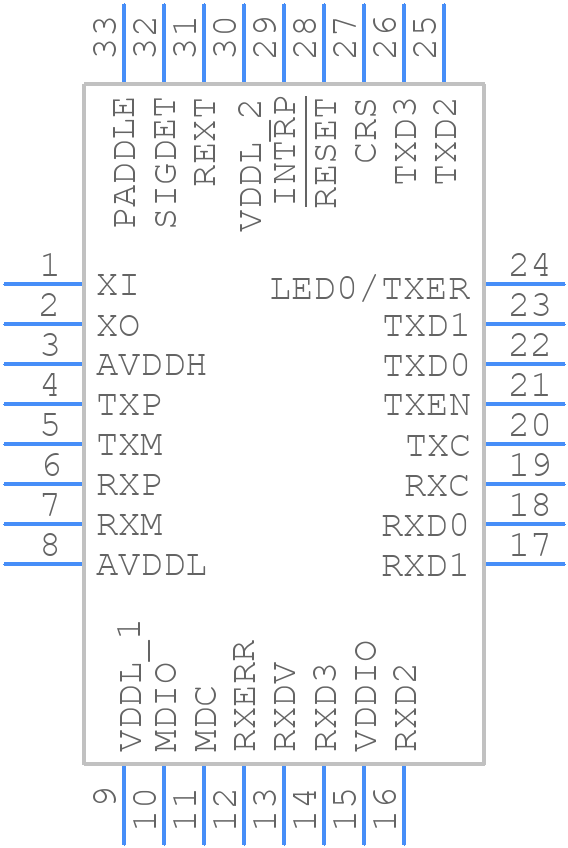

KSZ8061MNXI-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8061MNXI-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN55-32LD-PL-1
click to zoom
3D Models
KSZ8061MNXI-TR - Microchip - 3D model - Quad Flat No-Lead - QFN55-32LD-PL-1
click to zoom

KSZ8061MNXI-TR Details

  • Manufacturer Part Number:

    KSZ8061MNXI-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

KSZ8061MNXI-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8061MNXI-TR can be found in the Microchip application note AN-1041, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The KSZ8061MNXI-TR can be configured for half-duplex or full-duplex operation by setting the appropriate registers. For half-duplex operation, set the HDX pin high and configure the TXEN and RXEN pins accordingly. For full-duplex operation, set the HDX pin low and configure the TXEN and RXEN pins accordingly. Refer to the datasheet for specific register settings.
  • The maximum cable length supported by the KSZ8061MNXI-TR is 100 meters, assuming a Category 5e or higher cable. However, the actual cable length may vary depending on the specific application, cable quality, and environmental conditions.
  • To troubleshoot issues with the KSZ8061MNXI-TR, start by checking the power supply voltage, clock frequency, and signal integrity. Use an oscilloscope to verify the signal waveforms and check for any signal distortion or noise. Also, review the device configuration and register settings to ensure they are correct. If the issue persists, consult the Microchip support resources or contact a Microchip representative for further assistance.
  • Yes, the KSZ8061MNXI-TR is rated for industrial temperature ranges from -40°C to 85°C. However, it's essential to ensure that the device is properly derated for high-temperature operation and that the PCB design and component selection are suitable for the intended operating temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8061MNXI-TR Overview

Use the download button to access the KSZ8061MNXI-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
