- Part Number KSZ8061RNBV
- Manufacturer Microchip
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 32 Pin QFN_11
- Released Date Oct 16, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
KSZ8061RNBV Details
-
Manufacturer Part Number:
KSZ8061RNBV
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
32
-
Manufacturer Package Code:
VQFN-32
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
24 Weeks
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
19
KSZ8061RNBV Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the KSZ8061RNBV can be found in the Microchip application note AN2054, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
-
The KSZ8061RNBV can be configured for half-duplex or full-duplex operation by setting the appropriate registers. For half-duplex operation, set the HDX pin high and configure the TXEN and RXEN pins accordingly. For full-duplex operation, set the HDX pin low and configure the TXEN and RXEN pins accordingly. Refer to the datasheet for specific register settings.
-
The maximum cable length supported by the KSZ8061RNBV depends on the specific application and the type of cable used. However, as a general guideline, the KSZ8061RNBV can support cable lengths up to 100 meters for Fast Ethernet and up to 200 meters for 10/100 Mbps Ethernet. It's recommended to consult the datasheet and application notes for specific guidance on cable length and signal integrity.
-
To troubleshoot issues with the KSZ8061RNBV, start by checking the device's status registers and error counters to identify the source of the problem. Use a logic analyzer or oscilloscope to capture and analyze the signal waveforms. Check the PCB layout and component placement for any potential signal integrity issues. Consult the datasheet, application notes, and Microchip's technical support resources for additional guidance and troubleshooting tips.
-
Yes, the KSZ8061RNBV is suitable for use in industrial and automotive applications. It operates over an extended temperature range of -40°C to 85°C and is designed to meet the requirements of industrial and automotive standards. However, it's essential to consult the datasheet and application notes to ensure that the device meets the specific requirements of your application.
Trust Checks
Community Provided
System Verified
Community Approved
KSZ8061RNBV Overview

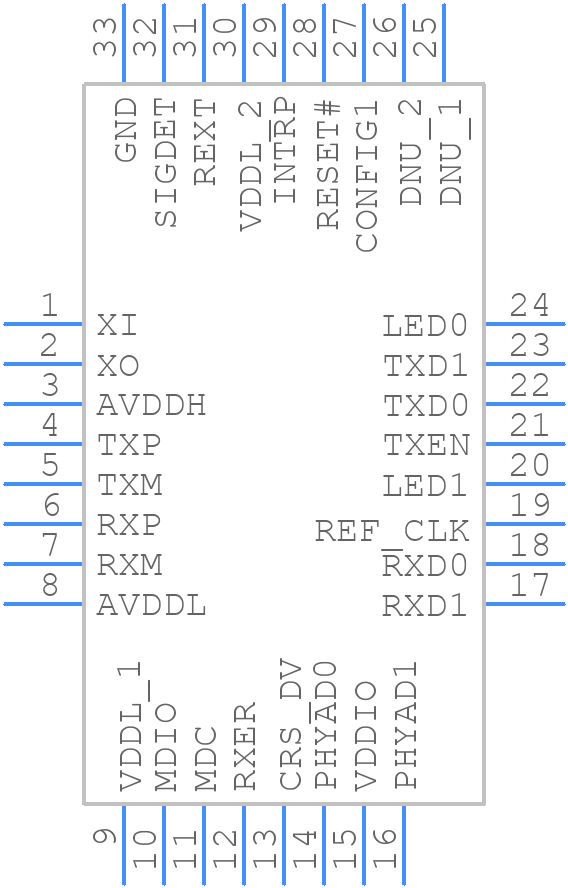

Use the download button to access the KSZ8061RNBV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80,
or try a keyword search, such as Network Interfaces
