KSZ8061RNDW-TR - Microchip

Description: Ethernet ICs 10/100 Base-TX/FX Quiet-Wire x-ceiver

Download KSZ8061RNDW-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

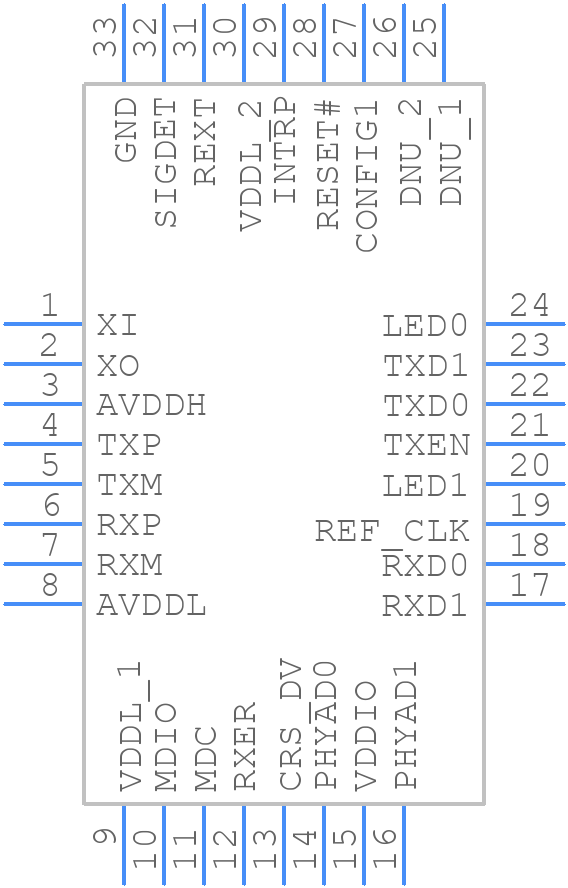

KSZ8061RNDW-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8061RNDW-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 LEAD QFN
click to zoom
3D Models
KSZ8061RNDW-TR - Microchip - 3D model - Quad Flat No-Lead - 32 LEAD QFN
click to zoom

KSZ8061RNDW-TR Details

  • Manufacturer Part Number:

    KSZ8061RNDW-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

KSZ8061RNDW-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8061RNDW-TR can be found in the Microchip application note AN-1041, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The KSZ8061RNDW-TR can be configured for half-duplex or full-duplex operation by setting the appropriate registers and pins. Refer to the datasheet section 8.3.1 for register settings and pin configurations for each mode.
  • The maximum cable length supported by the KSZ8061RNDW-TR is 100 meters for Category 5e or higher cabling, assuming a maximum attenuation of 11.5 dB at 100 MHz.
  • To troubleshoot issues with the KSZ8061RNDW-TR, start by checking the power supply, clock, and reset signals. Then, use a logic analyzer or oscilloscope to verify the signal integrity and timing. Refer to the datasheet and application notes for specific troubleshooting guidelines.
  • The KSZ8061RNDW-TR is designed to support standard Ethernet protocols (IEEE 802.3). While it may be possible to use it with non-standard protocols, it is not recommended and may require significant customization and testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8061RNDW-TR Overview

Use the download button to access the KSZ8061RNDW-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
