KSZ8081MLXCA-TR - Microchip

Description: Ethernet Transceiver,PHY,MII,LQFP48 Microchip KSZ8081MLXCA-TR, IEEE 802.3 Physical Layer Transceiver, 3.3 V, 48-Pin LQFP

Download KSZ8081MLXCA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

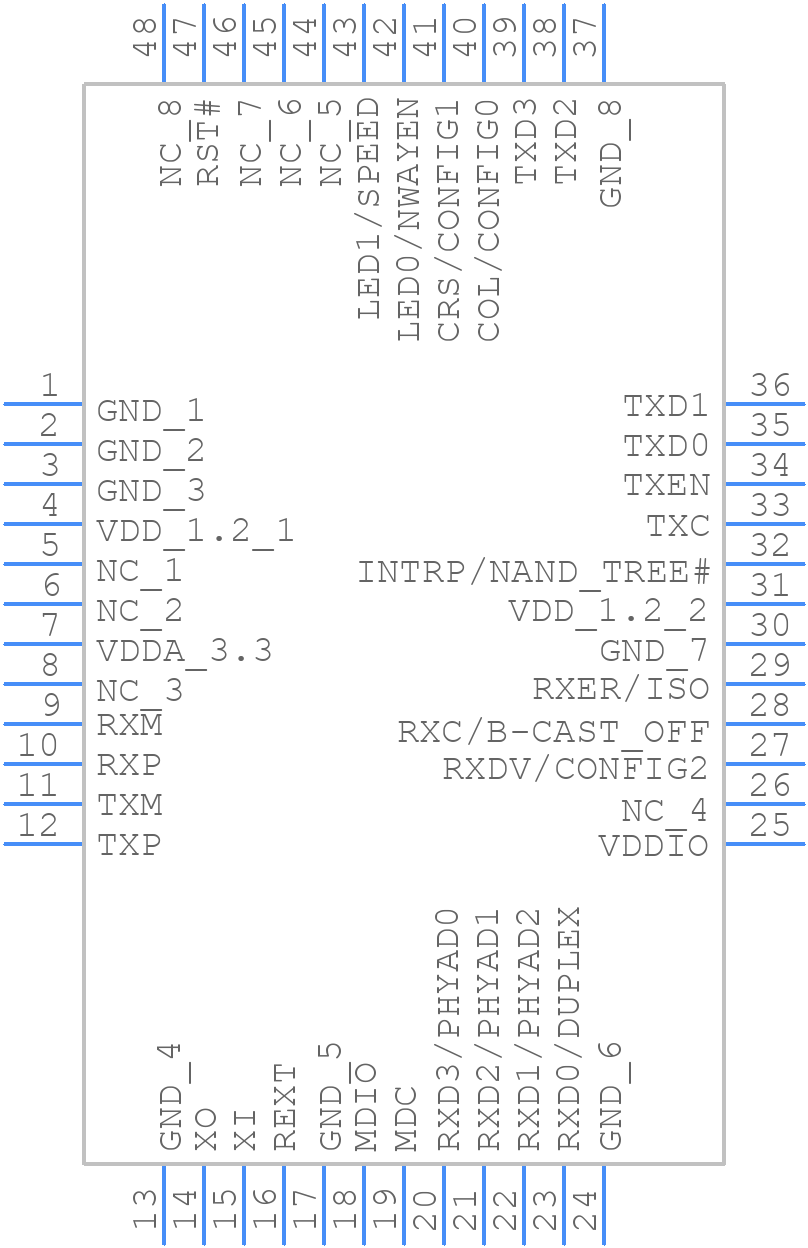

KSZ8081MLXCA-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8081MLXCA-TR - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - KSZ8081MLXCA-TR
click to zoom
3D Models
KSZ8081MLXCA-TR - Microchip - 3D model - Quad Flat Packages - KSZ8081MLXCA-TR
click to zoom

KSZ8081MLXCA-TR Details

  • Manufacturer Part Number:

    KSZ8081MLXCA-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    LQFP-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2016-08-30

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

KSZ8081MLXCA-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8081MLXCA-TR can be found in the Microchip application note AN2054, which provides guidelines for PCB design and layout considerations.
  • The KSZ8081MLXCA-TR supports auto-negotiation, which can be enabled by setting the ANENABLE bit in the BMCR register. The device will then automatically negotiate the fastest possible speed and duplex mode with the link partner.
  • The KSZ8081MLXCA-TR supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard for Ethernet over twisted pair cables.
  • The KSZ8081MLXCA-TR has a built-in power management feature that can be controlled through the PMD register. The device can be put into a low-power mode by setting the PD bit in the PMD register, which reduces power consumption.
  • The KSZ8081MLXCA-TR has an operating temperature range of -40°C to +85°C, making it suitable for use in a wide range of industrial and commercial applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8081MLXCA-TR Overview

Use the download button to access the KSZ8081MLXCA-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces
