KSZ8081MNXCA - Microchip

Description: MICROCHIP - KSZ8081MNXCA - Ethernet Controller, 100 Mbps, IEEE 802.3, 3.135 V, 3.465 V, QFN, 32 Pins

Download KSZ8081MNXCA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

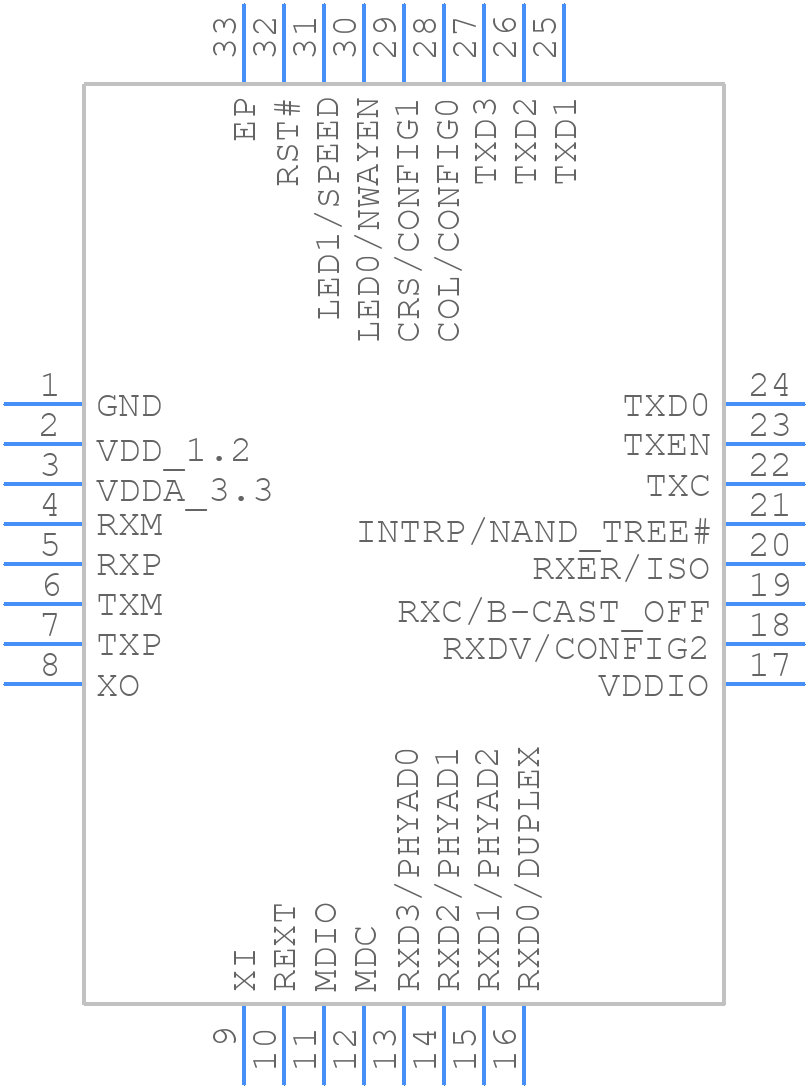

KSZ8081MNXCA - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8081MNXCA - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 LEAD QFN
click to zoom
3D Models
KSZ8081MNXCA - Microchip - 3D model - Quad Flat No-Lead - 32 LEAD QFN
click to zoom

KSZ8081MNXCA Details

  • Manufacturer Part Number:

    KSZ8081MNXCA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Additional Feature:

    It can also operate with 3.3V and 2.5 V

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

KSZ8081MNXCA Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8081MNXCA can be found in the Microchip application note AN2054, which provides guidelines for PCB design, layout, and thermal considerations.
  • The KSZ8081MNXCA can be configured for different network topologies using the Microchip LANCheck online tool or by consulting the device's datasheet and application notes. The tool provides a graphical interface to configure the device for specific network topologies, such as star, bus, or ring topologies.
  • The KSZ8081MNXCA has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a PCB with a thermal pad connected to a ground plane or a heat sink to dissipate heat. The device's thermal resistance (θJA) is 30°C/W, and the recommended operating temperature range is -40°C to 85°C.
  • To troubleshoot issues with the KSZ8081MNXCA, consult the device's datasheet and application notes for common issues and solutions. Additionally, Microchip provides a range of debugging tools, such as the LANCheck tool, which can help identify and resolve issues with the device.
  • The KSZ8081MNXCA is designed to meet the electromagnetic interference (EMI) and electromagnetic compatibility (EMC) requirements of various regulatory bodies, including the FCC and CE. To ensure compliance, follow the guidelines outlined in the device's datasheet and application notes, and consult with a qualified engineer or EMI/EMC expert if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8081MNXCA Overview

Use the download button to access the KSZ8081MNXCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces
