The recommended PCB layout for the KSZ8081RNACA involves placing the device near the RJ-45 connector, using a solid ground plane, and minimizing the length of the traces between the device and the magnetics. A 4-layer PCB is recommended, with the top layer for signals, the second layer for the ground plane, the third layer for power, and the bottom layer for the ground plane.
To ensure reliable operation of the KSZ8081RNACA in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to 85°C.
The KSZ8081RNACA is designed to meet the EMI and RFI requirements of the IEEE 802.3 standard. To minimize EMI and RFI, it is recommended to use a shielded RJ-45 connector, keep the PCB layout compact, and use a common-mode choke to filter out noise. Additionally, the device should be placed in a metal enclosure to reduce radiation.
To troubleshoot issues with the KSZ8081RNACA, it is recommended to follow a systematic approach, starting with checking the power supply, clock, and reset signals. Then, verify the device configuration and register settings. Use a logic analyzer or oscilloscope to capture and analyze the signals. Finally, consult the datasheet and application notes for troubleshooting guidelines and FAQs.
The KSZ8081RNACA requires a specific power sequencing to ensure proper operation. The recommended power-up sequence is: 1) power up the 3.3V supply, 2) power up the 1.2V supply, and 3) apply the clock signal. The power-down sequence should be reversed. It is also recommended to use a power sequencing controller or a voltage supervisor to ensure proper power-up and power-down sequencing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KSZ8081RNACA Overview

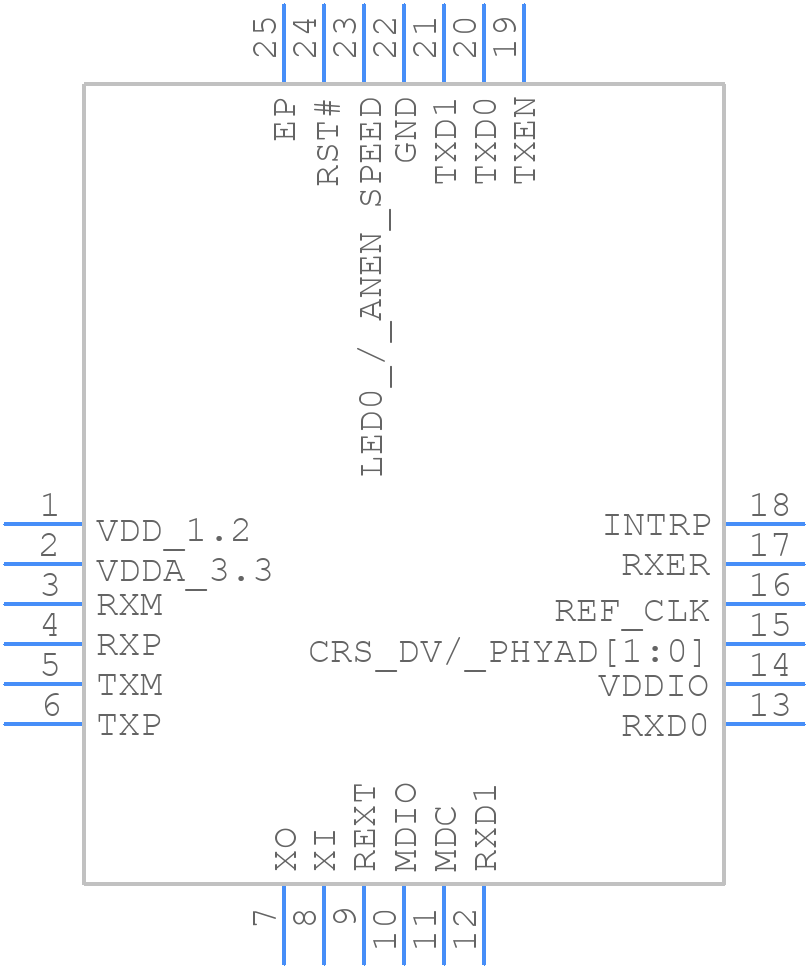

Use the download button to access the KSZ8081RNACA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80,
or try a keyword search, such as Network Interfaces
