The recommended PCB layout for the KSZ8091MLXCA involves placing the device near the RJ-45 connector, using a solid ground plane, and minimizing the length of the differential pairs. A 4-layer PCB is recommended, with the top layer for signals, the second layer for the ground plane, the third layer for power, and the bottom layer for the ground plane.
To ensure reliable operation of the KSZ8091MLXCA in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device.
The KSZ8091MLXCA is designed to meet the EMI and RFI requirements of the IEEE 802.3 standard. To minimize EMI and RFI, it is recommended to use a shielded RJ-45 connector, keep the PCB layout compact, and use a common-mode choke on the differential pairs.
To troubleshoot issues with the KSZ8091MLXCA, start by checking the power supply voltage, clock signal, and reset signal. Use an oscilloscope to verify the signal integrity and check for any signal reflections or distortions. Also, check the PCB layout for any errors or omissions.
The KSZ8091MLXCA has a built-in power management feature that allows it to operate in a low-power mode. Additionally, the device can be powered down or put into a sleep mode to reduce power consumption. External power management ICs can also be used to further reduce power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KSZ8091MLXCA Overview

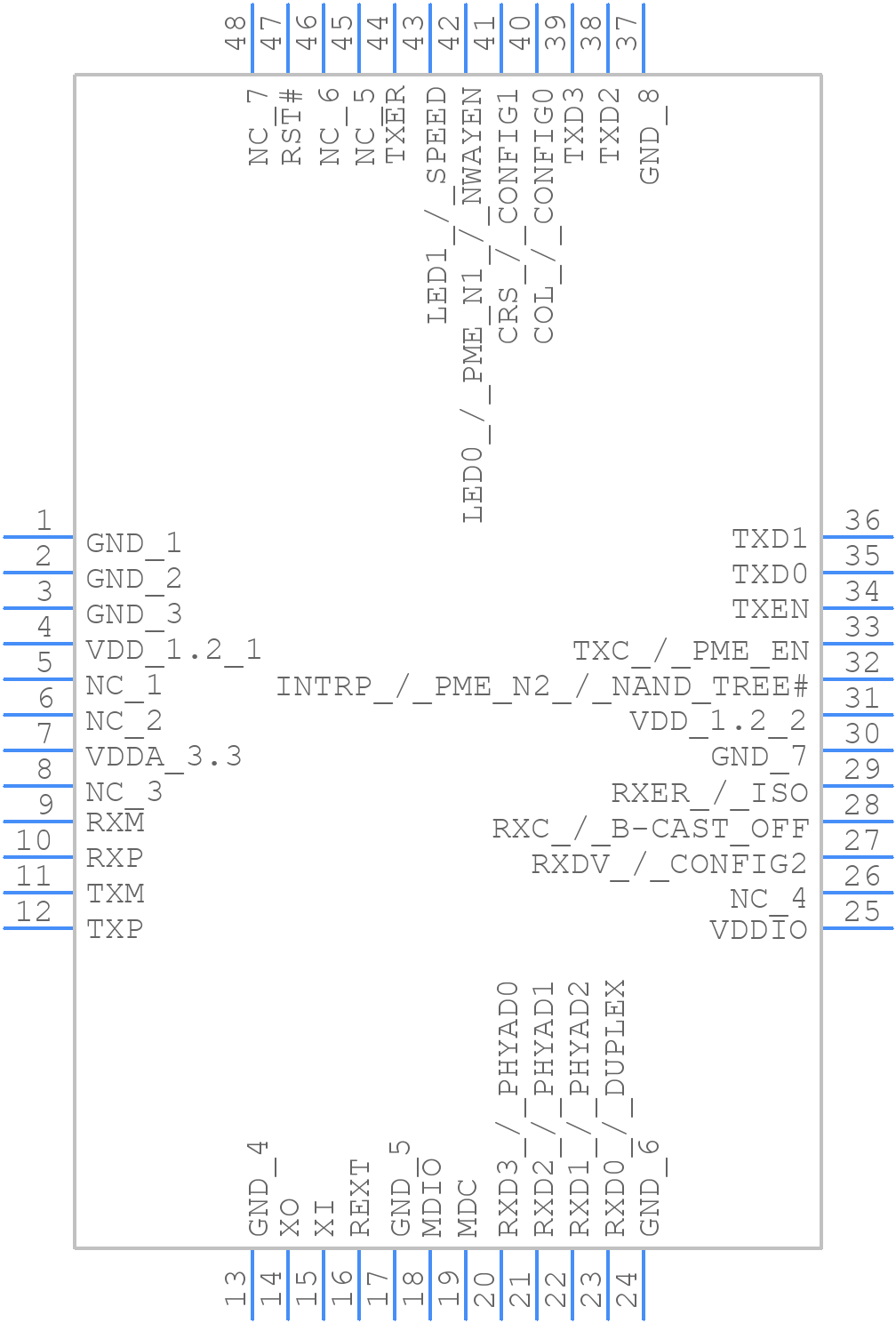

Use the download button to access the KSZ8091MLXCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80,
or try a keyword search, such as Network Interfaces
