KSZ8091MNXCA-TR - Microchip

Description: Ethernet ICs 10/100 Base Phy Transceiver

Download KSZ8091MNXCA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

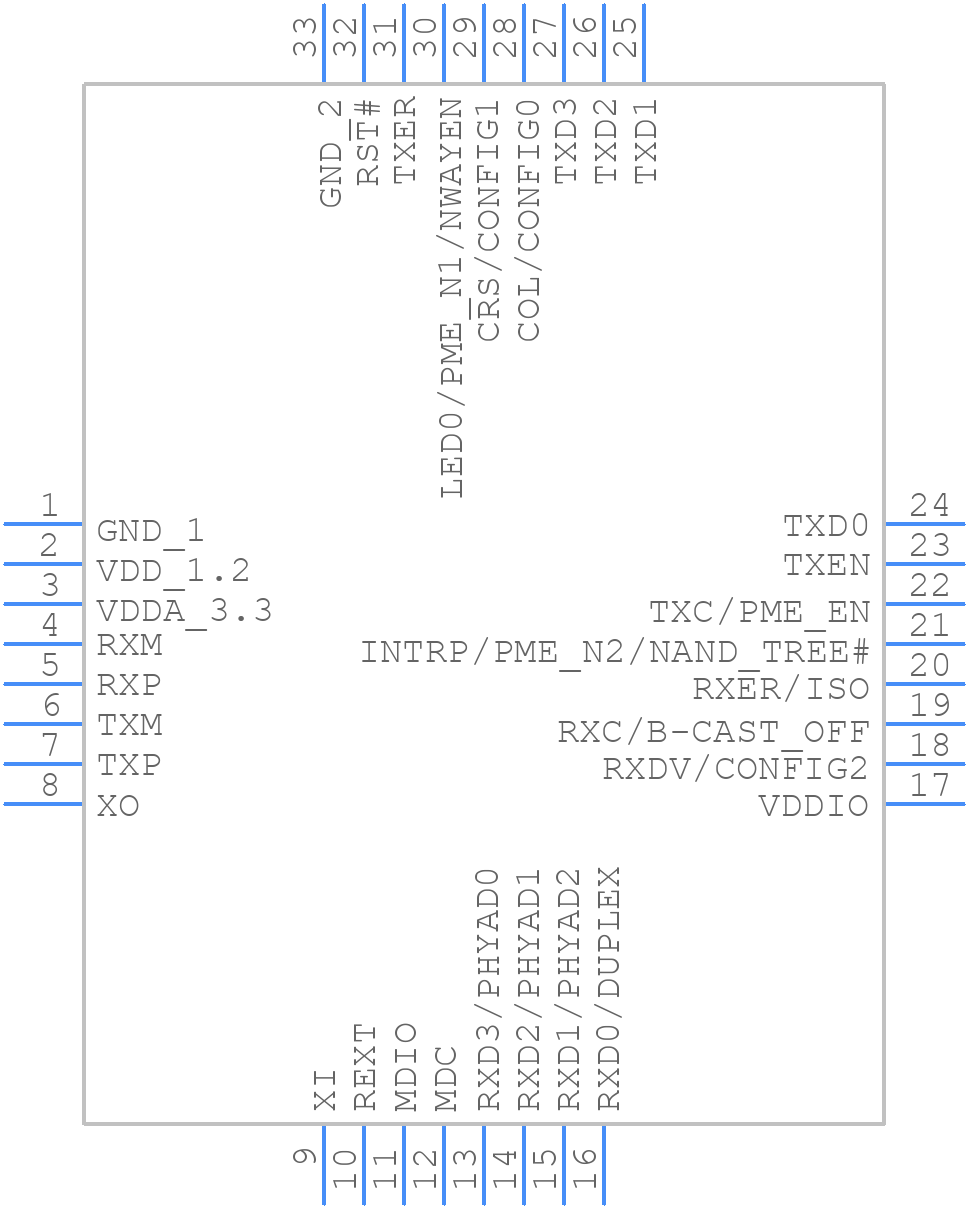

KSZ8091MNXCA-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8091MNXCA-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Pin QFN-ren1
click to zoom
3D Models
KSZ8091MNXCA-TR - Microchip - 3D model - Quad Flat No-Lead - 32-Pin QFN-ren1
click to zoom

KSZ8091MNXCA-TR Details

  • Manufacturer Part Number:

    KSZ8091MNXCA-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

KSZ8091MNXCA-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8091MNXCA-TR can be found in the Microchip application note AN2054, which provides guidelines for designing a robust and reliable PCB layout for the device.
  • The KSZ8091MNXCA-TR can be configured for different network topologies using the Microchip LANCheck online tool or by consulting the device's datasheet and application notes. The tool provides a graphical interface to configure the device for specific network topologies, such as star, bus, or ring topologies.
  • The KSZ8091MNXCA-TR has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within the recommended temperature range, and proper thermal design considerations should be made, such as providing adequate heat sinking and airflow.
  • Troubleshooting issues with the KSZ8091MNXCA-TR can be done using a combination of tools and techniques, such as using a logic analyzer to capture and analyze the device's signals, consulting the device's datasheet and application notes, and using Microchip's technical support resources.
  • The KSZ8091MNXCA-TR is designed to meet the electromagnetic interference (EMI) and electromagnetic compatibility (EMC) requirements of various regulatory agencies. To ensure compliance, proper PCB layout, shielding, and filtering techniques should be used, and the device should be operated within the recommended specifications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8091MNXCA-TR Overview

Use the download button to access the KSZ8091MNXCA-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
