KSZ8091MNXCA - Microchip

Description: 1/1 Transceiver Full MII, RMII 32-QFN (5x5)

Download KSZ8091MNXCA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

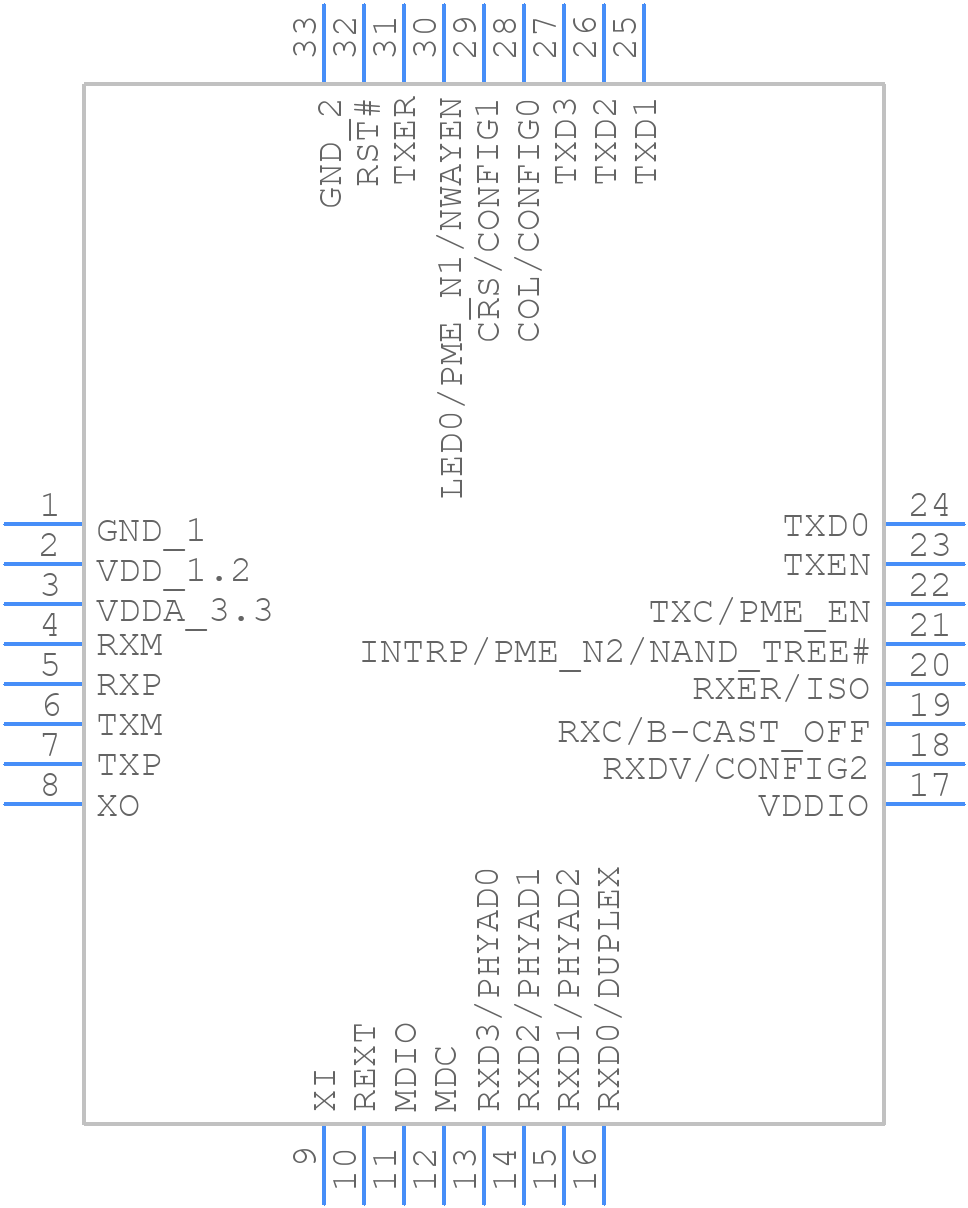

KSZ8091MNXCA - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8091MNXCA - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32
click to zoom
3D Models
KSZ8091MNXCA - Microchip - 3D model - Quad Flat No-Lead - QFN32
click to zoom

KSZ8091MNXCA Details

  • Manufacturer Part Number:

    KSZ8091MNXCA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

KSZ8091MNXCA Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8091MNXCA is to follow a 4-layer stack-up with a solid ground plane on the bottom layer, and to keep the analog and digital signals separate to minimize noise and crosstalk.
  • The KSZ8091MNXCA can be configured for a specific network topology using the Microchip LANCheck online tool or by using the KSZ8091MNXCA evaluation board and the accompanying software development kit (SDK).
  • The maximum cable length supported by the KSZ8091MNXCA is 100 meters, as per the IEEE 802.3 standard for Ethernet over twisted pair cables.
  • Yes, the KSZ8091MNXCA is rated for industrial temperature range applications, with an operating temperature range of -40°C to 85°C.
  • The KSZ8091MNXCA has a built-in power management feature that can be controlled through the device's registers. Additionally, the device can be powered down or put into a low-power mode to reduce power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8091MNXCA Overview

Use the download button to access the KSZ8091MNXCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces
